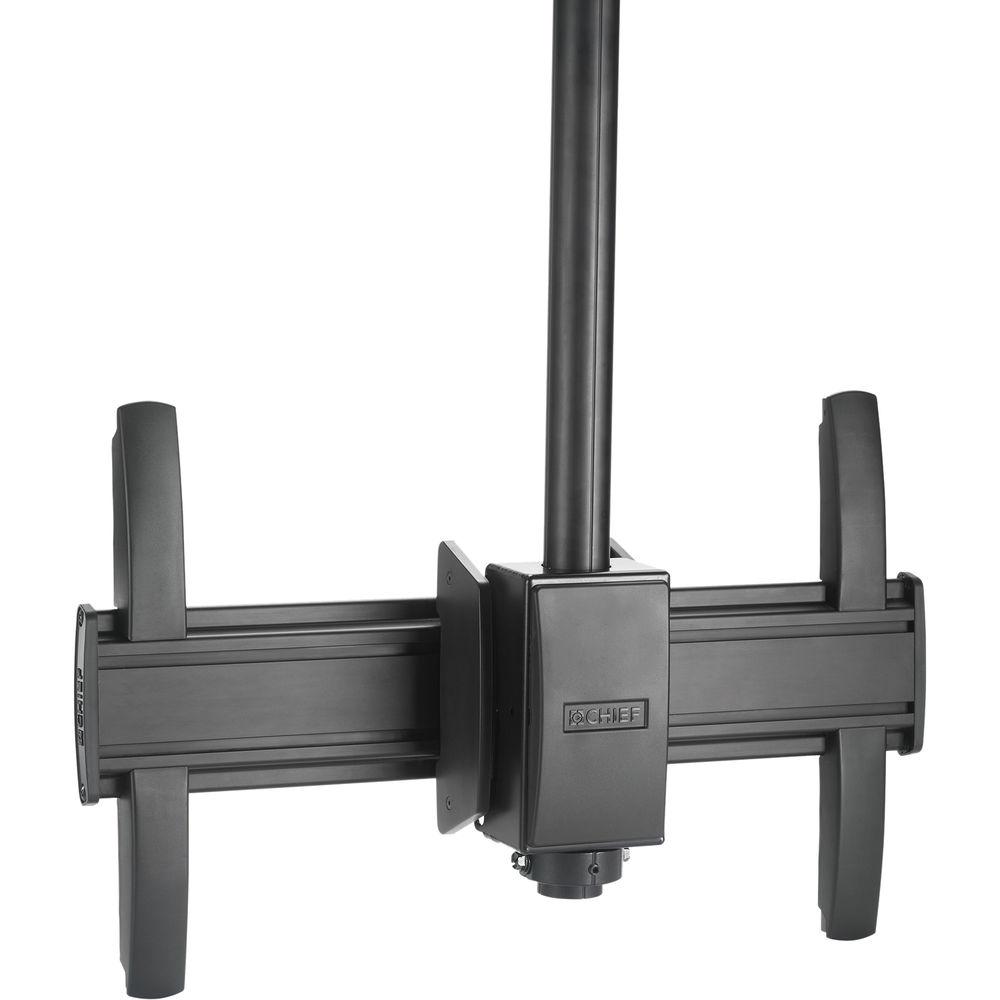

User Manual for Chief LCM1U FUSION Large Flat Panel Ceiling Mount Click to enlarge the picture
Contents of the user manual for the Chief LCM1U FUSION Large Flat Panel
- Product category: Monitor Ceiling Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Ceiling Mounts
 |
User manual for the Chief LCM1U FUSION Large Flat Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

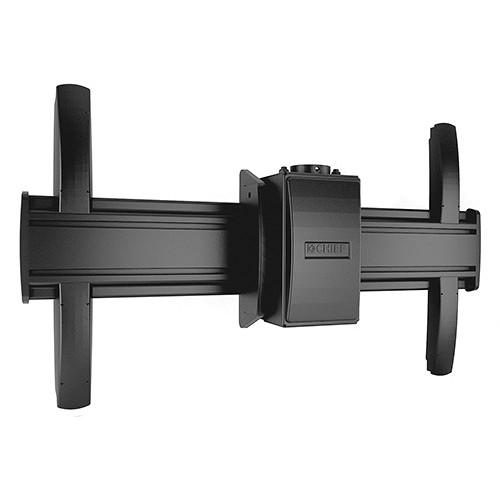

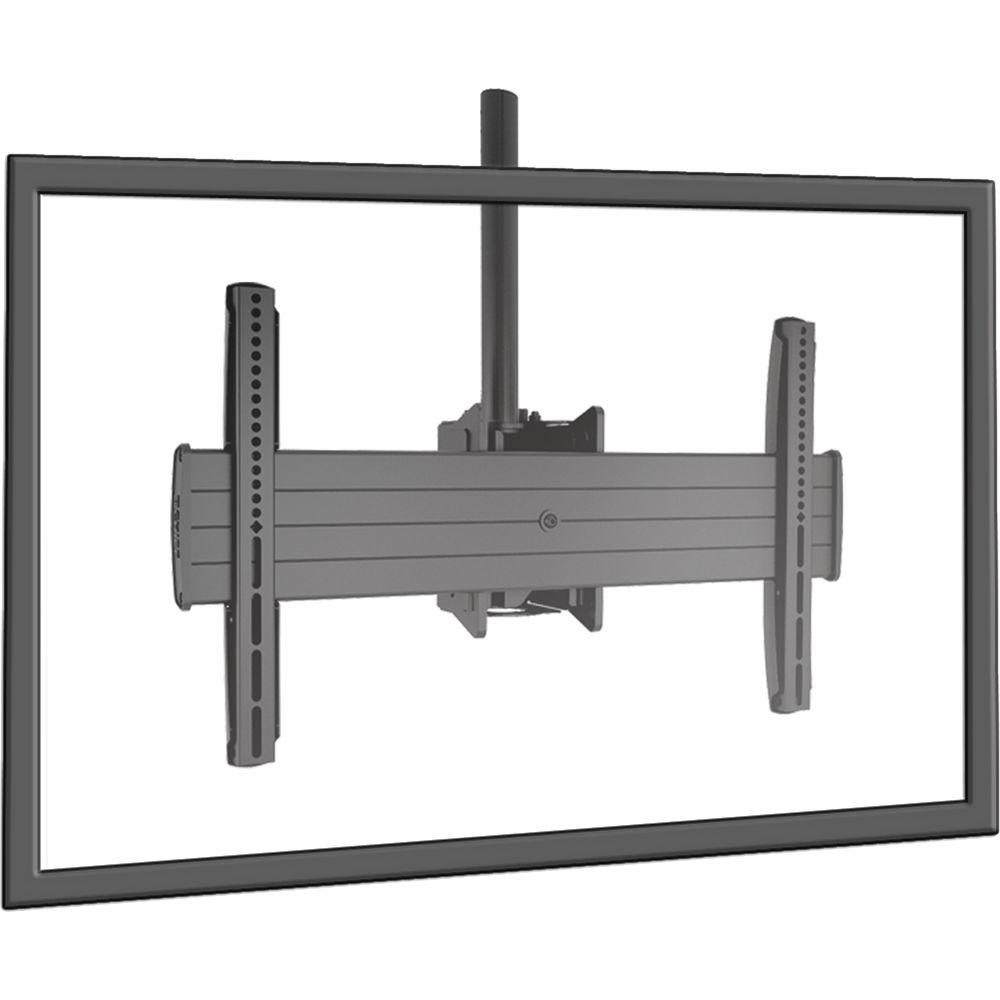

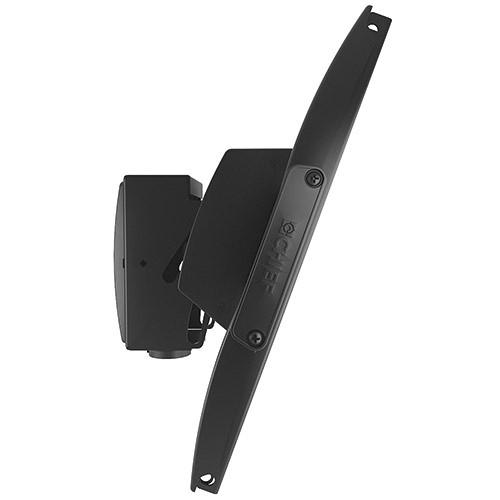

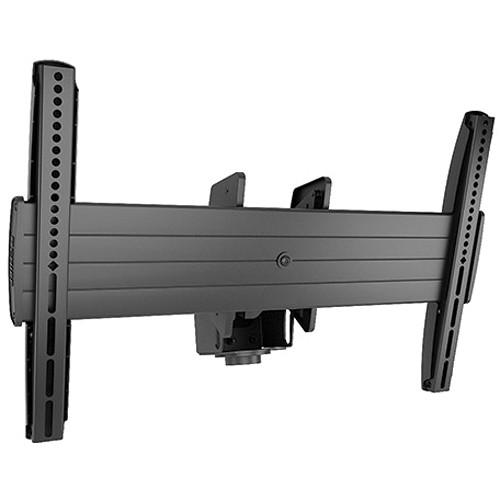

Product description The black Chief LCM1U FUSION Large Flat Panel Ceiling Mount can hold a display weighing up to 125 lb with a mounting pattern between 200 x 100 and 616 x 400mm. It is suitable for digital signage installations and is compatible with traditional 1.5" NPT- and CPA-pinned ceiling plates and column systems. Note: A compatible ceiling plate and extension column are required and sold separately. - Repeatability
- Continuous tilt ranges with four set locking points to eliminate guesswork when adjusting multiple screens
- Accessibility
- On/off connection designed for ease of installation and service
- Centris Fingertip Tilt
- Adjust display using Centris fingertip tilt technology
- Simple and Secure
- Tool-free screen engagement with optional padlock security (padlock to be purchased separately)
- Flexibility
- Mount swivels to your preferred viewing angle
- Select Compatibility
- Compatible with traditional 1.5" NPT- and CPA-pinned ceiling plates and column systems
UPC: 841872156170 In the Box Chief LCM1U FUSION Large Flat Panel Ceiling Mount (Black) Assembly Hardware Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief LCM1U FUSION Large Flat Panel Ceiling Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCM1U Specs | Mounting Pattern Compatibility | 200 x 100 to 616 x 400 mm | | Weight Capacity | 125 lb (56.7 kg) | | Adjustments | Tilt: -20 to 5°
Roll: ±3° | | Orientation | Landscape | | Certifications | UL listed | | Dimensions (W x H x D) | 26.8 x 16 x 6.4" (681 x 404 x 162 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 18.95 lb | | Box Dimensions (LxWxH) | 28.9 x 13.9 x 6.9" |
