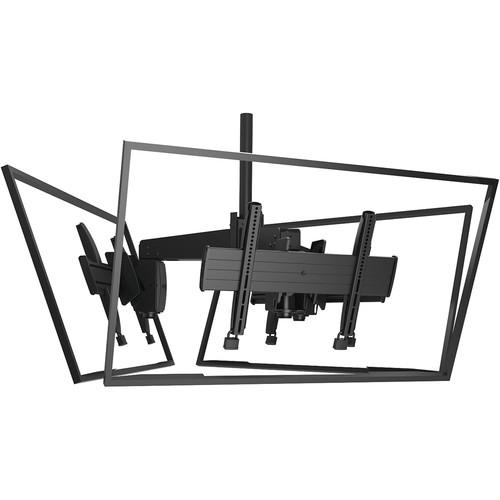

User Manual for Chief LCM3U Large Ceiling Multi-Directional Solution Click to enlarge the picture
Contents of the user manual for the Chief LCM3U Large Ceiling Multi-Directional Solution
- Product category: Monitor Ceiling Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Ceiling Mounts
|
User manual for the Chief LCM3U Large Ceiling Multi-Directional Solution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The LCM3U Large Ceiling Multi-Directional Solution from Chief can be used to mount three 32 to 60" displays. The mount is designed to create a 360° viewing capability while supporting the displays from a single column drop. The mount is compatible with traditional 1.5" NPT and CPA pinned ceiling plates and column systems. Note: Compatible ceiling plate and extension column are required and must be ordered separately. - Repeatability
- Continuous tilt ranges with four set locking points to eliminate guesswork when adjusting multiple screens
- Accessibility
- Simple on/off connection for ease of installation and service
- Centris Fingertip Tilt
- Adjust display using Centris fingertip tilt technology
- Simple and Secure
- Tool-free screen engagement with optional padlock security (padlock to be purchased separately)
- Flexibility
- Mount swivels to preferred viewing angle
UPC: 841872159508 In the Box Chief LCM3U Large Ceiling Multi-Directional Solution (Triple Mount) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief LCM3U Large Ceiling Multi-Directional Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LCM3U Specs | Adjustments | Roll: ±3° | | Mounting Pattern Compatibility | 200 x 100 to 600 x 400 mm | | Tilt | +5°, -20° | | Typical Screen Sizes | 32.0 to 60.0" / 81.3 to 152.4 cm | | Certifications | UL listed | | Dimensions (H x W x D) | 18.2 x 46.6 x 46.6" / 46.2 x 118.4 x 118.4 cm | | Weight Capacity | 125 lb / 56.7 kg per screen | | | | Package Weight | 110.0 lb | | Box Dimensions (LxWxH) | 36.5 x 36.0 x 22.0" |
