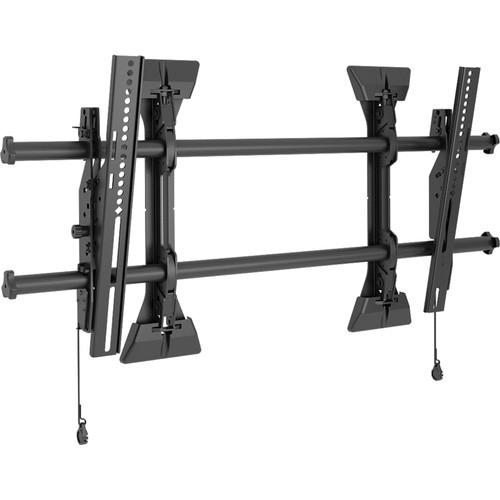

User Manual for Chief LTM1U Fusion Series Tilting Landscape Wall Mount for 37 to 63" Displays Click to enlarge the picture
Contents of the user manual for the Chief LTM1U Fusion Series Tilting Landscape
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief LTM1U Fusion Series Tilting Landscape contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief LTM1U Fusion Series Tilting Landscape Wall Mount will support TVs and monitors 37 to 63" and up to 200 lb, displayed in landscape mode. It offers the option of post-installation lateral shift up to 17.4" and height and level adjustment. It features a built-in cable stand for easy access under the screen. The LTM1U has ClickConnect, which provides an audible click when the screen is safely engaged with the mount. - Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 17.4" of post-installation lateral shift for near limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable, and secure throughout the life of the installation
- A full line of accessories can be installed with the mount, and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Included nesting spacers can be stacked to achieve virtually any depth from display to wall
- Quick-store cords use magnets to easily store and access pull cords
- Integrated padlock shackle for adding a lock, up to 5/16" in diameter
- Easy-to-open box with less waste to throw away
UPC: 841872163277 Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief LTM1U Fusion Series Tilting Landscape Wall Mount for 37 to 63" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LTM1U Specs | | | Supported Screen Sizes | 37 to 63" / 94.0 to 160.0 cm | | Supported Weight Capacity | 200 lb / 90.7 kg | | Mounting-Hole Pattern | 100 x 100 to 830 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -12 to +2
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
