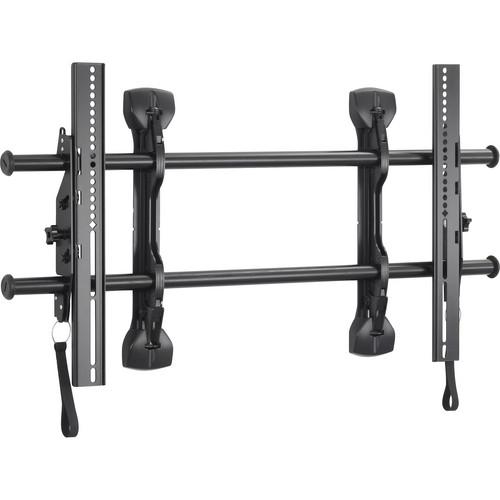

User Manual for Chief LTM5053 Fusion Flat Panel Micro-Adjustable Tilt Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief LTM5053 Fusion Flat Panel Micro-Adjustable
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief LTM5053 Fusion Flat Panel Micro-Adjustable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief LTM5053 Fusion Flat Panel Micro-Adjustable Tilt Wall Mount allows you to mount flat panel displays of 37 to 63". The LTM5053 is designed with Chief's ControlZone leveling feature for post-installation tuning of height and leveling. The wall mount also allows features Chief's Centerless Shift for lateral left/right shift post-installation.When it comes to installation, the LTM5053 Fusion comes with a custom hardware kit for proper mounting. Once the system is in place, it utilizes Chief's ClickConnect to audibly let you know the screen has securely engaged with the mount. A built-in cable stand provides access under the display, and numerous optional accessories can be installed with the mount for added functionality. To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. - Easy Installation
-
- A full line of optional accessories can be installed with the mount and the entire unit can be adjusted together
- Built-in cable stand provides easy access under the screen
- Ships with a custom hardware kit
- Safe and Secure
-
- ClickConnect offers an audible click when the screen safely engages with the mount
- Provides integrated security, just add a padlock
- Viewer Friendly
-
- ControlZone leveling for post-installation fine tuning of height and leveling
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Centerless Shift provides up to 17.5" (445mm) of post-installation lateral shift - 8.75" (222mm) left/right of uprights - for limitless centering
- Proven Quality
-
- UL-listed for proven strength
- Mount goes through a series of rigorous tests to ensure a safe and secure solution
- Backed by a 10-year warranty to ensure that you are receiving the best quality product
In the Box Chief LTM5053 Fusion Flat Panel Micro-Adjustable Tilt Wall Mount Custom Hardware Kit 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief LTM5053 Fusion Flat Panel Micro-Adjustable Tilt Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief LTM5053 Specs | | | Supported Screen Sizes | 37 to 63" / 94.0 to 160.0 cm | | Supported Weight Capacity | 200 lb / 90.7 kg | | Number of Displays Supported | 1 | | | | Vertical Adjustment | -0.5 to 0.5" / -1.3 to 1.3 cm | | Orientation | Landscape | | | | Construction Material | Steel | | Distance from Mounting Surface | 2.0" / 50.00 mm | | Dimensions | 34.4 x 16.5 x 34.4" / 87.5 x 41.9 x 5.1 cm |
