User Manual for Chief MIWRFVB In-Wall Swing Arm Click to enlarge the picture
Contents of the user manual for the Chief MIWRFVB In-Wall Swing Arm
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief MIWRFVB In-Wall Swing Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

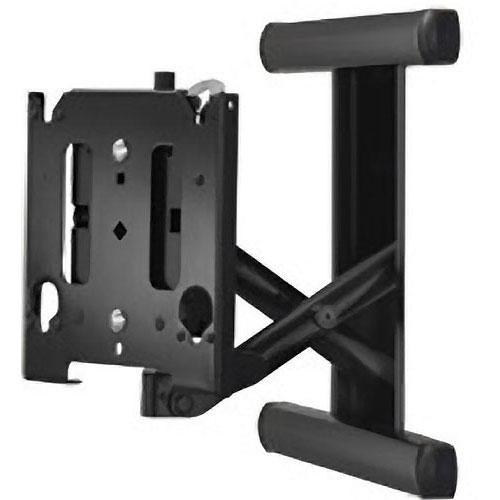

Product description The state-of-the-art Chief MIWRFVB is a fully integrated, pre-assembled swing arm, fitting flush inside the wall with a low-profile finish. Designed for 30-50" flat panel displays up to 125 lbs, the MIWRFVB allows perfect TV placement during installation without cutting studs or having to retrofit existing wall structures. Simply cut out the drywall at the desired wall location and install the in-wall box. In addition, installation is made easier with built-in lateral shift and height adjustment. Integrated cable management and a trim kit are provided for an aesthetic and low-profile finish of less than 2". Users have increased positioning flexibility of their display with wide viewing angles. Optimal viewing is achieved with 37° of left/right swivel, up to 9.9" of extension, fingertip tilt, and ultra smooth movement. The MIWRFVB includes a VESA-compliant bracket making it compatible with hundreds of flat panel displays. However, if you want to confirm the compatibility of this mount with your flat panel TV or monitor, please visit Chief's MountFinder Pro.xsqzyrcyuxsutebzyvsrzvusbv Easy Installation - 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 100mm, 300 x 200mm, and 400 x 200mm VESA-compatible
- Comes complete, no assembly required.
- Includes template for easy measuring and simplified post-construction installation. Includes all wood stud installation hardware.
- Center flat panel on wall at any position on wall between 16" center studs without cutting studs. No header/footer necessary.
- Exclusive ClickConnect mounting system provides easy connect/disconnect without requring any tools. An audible click confirms panels are locked in place. Add a padlock to protect the display from theft.
- Lateral shift allows perfect centering of flat panel between 16" center stud system. Can accommodate up to 3-1/2" of lateral shift adjustment (right or left display offset from center of studs).
- Built-in cable management channels for a clean installation.
- Designed to accommodate up to 1" of display height adjustment.
- The mount allows for the horizontal alignment (Roll) of the display to be adjusted up to 2° right or left to level the display after installing.
Viewing Conveniences - Compact, low profile design ensures mount remains concealed behind the screen.
- Optimal viewing is achieved with 37° of left/right swivel and ultra-smooth extension up to 9.9".
- Centris technology uses the center of gravity to achieve smooth fingertip tilt of +/-15°. Screen angle stays set until you decide to re-adjust.
- Comes with a 10-year warranty to ensure you receive the best product possible.
UPC: 841872110653 In the Box Chief MIWRFVB In-Wall Swing Arm In-Wall Mount and Swing Arm Upper and Lower Mounting Rails Spacers (4) End Caps (4) Upper and Lower Channel Covers Trim Pieces (2) Lag Screws (4) Washers (4) Flanged Nuts (4) Cable Tie Clips (8) Cable Covers (2) 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief MIWRFVB In-Wall Swing Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief MIWRFVB Specs | | | Mounting-Hole Pattern | 100 x 100 to 400 x 200 mm | | Number of Displays Supported | 1 | | | | Orientation | Landscape, Portrait | | | | Package Weight | 46.1 lb | | Box Dimensions (LxWxH) | 31.5 x 12.5 x 9.5" |
