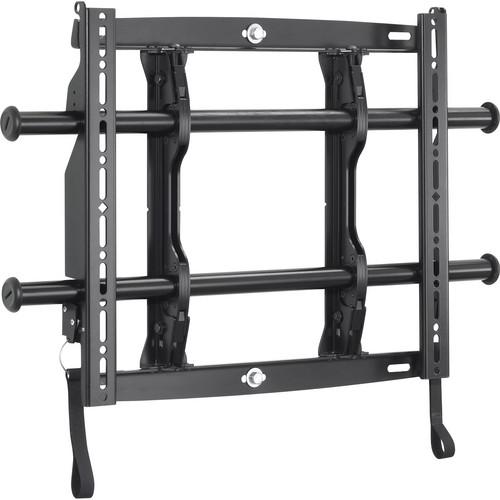

User Manual for Chief MSM3241 Fusion Micro-Adjustable Fixed Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief MSM3241 Fusion Micro-Adjustable Fixed Wall
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief MSM3241 Fusion Micro-Adjustable Fixed Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description Chief's MSM3241 Fusion Micro-Adjustable Fixed Wall Mount is designed for installing 26 to 47" flat panel displays. The MSM3241 has multiple installation options, such as single or dual stud mounting on 16" centers. The unit ships with a custom hardware kit for precise mounting. It also provides the option for integrated security when locked with an optional padlock. Once installed special Chief features aid in adjustments and fine-tuning, including ControlZone Leveling which enables height and leveling adjustment. Centerless Shift allows for post-installation lateral shift. When you need to access the area under the screen a built-in cable stand makes it possible to do so with ease. To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. - Easy Installation
-
- Multiple installation options, including single or dual stud mounting on 16" centers
- A full line of accessories can be installed with the mount - the entire unit can be adjusted together
- Viewer Friendly
-
- Centerless Shift provides up to 14.5" (368mm) of post-installation lateral shift - 7.25" (184mm) left/right of uprights for limitless centering
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Built-in cable stand provides easy access under the screen
- Safe and Secure
-
- Ships with a custom hardware kit
- Provides integrated security, just add a padlock
- ClickConnect offers an audible click when the screen safely engages with the mount
- Proven Quality
-
- UL-listed for proven strength
- Mount goes through a series of rigorous tests to ensure a safe and secure solution
- Backed by a 10-year warranty to ensure that you are receiving the best quality product
In the Box Chief MSM3241 Fusion Micro-Adjustable Fixed Wall Mount Custom Hardware Kit User Manual 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief MSM3241 Fusion Micro-Adjustable Fixed Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief MSM3241 Specs | | | Supported Weight Capacity | : 75 lb / 34 kg
: 125 lb / 56.7 kg | | Number of Displays Supported | 1 | | | | Vertical Adjustment | -0.5 to 0.5" / -1.3 to 1.3 cm | | Orientation | Landscape | | | | Construction Material | Steel | | Distance from Mounting Surface | 2.0" / 50.00 mm | | Dimensions | 25.4 x 16.5 x 2" / 64.6 x 42 x 5 cm | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 36.0 x 22.0 x 5.0" |
