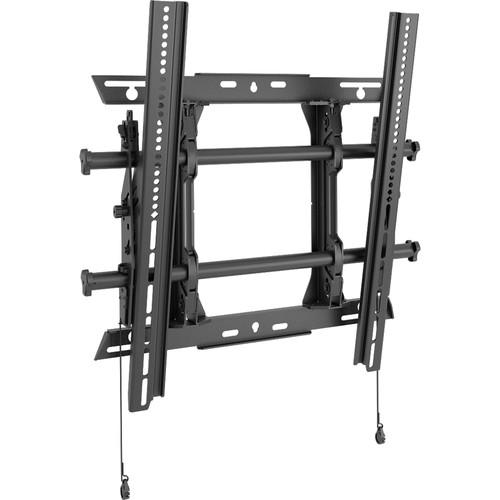

User Manual for Chief MTMP1U Fusion Series Tilting Portrait Wall Mount for 32 to 47" Displays Click to enlarge the picture
Contents of the user manual for the Chief MTMP1U Fusion Series Tilting Portrait
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief MTMP1U Fusion Series Tilting Portrait contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief MTMP1U Fusion Series Tilting Portrait Wall Mount will support TV and monitor screens 32 to 47" and up to 200 lb in a dual-stud installation or 125 lb in a single-stud installation. It will allow you to tilt your screen -12 to 2°. The mount offers the option of post-installation lateral shift up to 10.4", 1" height, and level adjustment. It features a built-in cable stand for easy access under the screen. The MTMP1U has ClickConnect, which provides an audible click when the screen is safely engaged with the mount. - Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 10.4" of post-installation lateral shift for near limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable, and secure throughout the life of the installation
- A full line of accessories can be installed with the mount, and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Included nesting spacers can be stacked to achieve virtually any depth from display to wall
- Quick-store cords use magnets to easily store and access pull cords
- Integrated padlock shackle for adding a lock, up to 5/16" in diameter
- Easy-to-open box with less waste to throw away
UPC: 841872163895 In the Box Chief MTMP1U Fusion Series Tilting Portrait Wall Mount for 32 to 47" Displays Assembly Hardware Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief MTMP1U Fusion Series Tilting Portrait Wall Mount for 32 to 47" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief MTMP1U Specs | | | Supported Screen Sizes | 32 to 47" / 81.3 to 119.4 cm | | Supported Weight Capacity | : 125 lb / 56.8 kg
: 200 lb / 90.9 kg | | Mounting-Hole Pattern | 100 x 100 to 570 x 600 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -12 to +5
