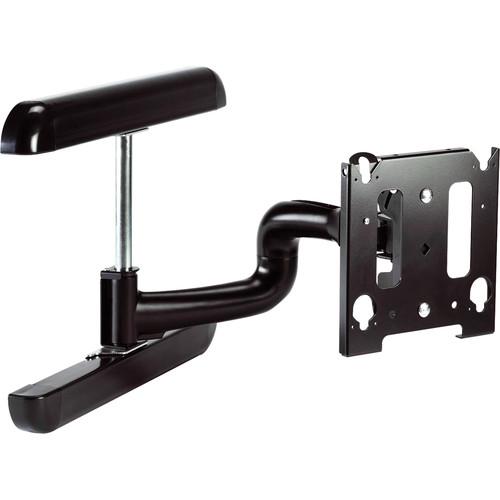

User Manual for Chief MWR-6000B Single Swing Arm Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief MWR-6000B Single Swing Arm Wall
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief MWR-6000B Single Swing Arm Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description View large flat panel displays up to 50" or 125 lbs from any angle with the Chief MWR-6000B Swing Arm Wall Mount. Rugged and versatile, the arm extends 24-7/8" in length from the wall, pivots up to 90° left or right of center and collapses to 3-3/8" to provide ultimate flexibility. The MWR-6000B features tool-free Click Connect mounting system and Centris mechanism for fingertip tilt adjustments. Great for home entertainment or boardroom applications.To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro.vastcarqwawafquzwxyxrvwcsartv Note: Requires MSB interface to complete installation. The MWR wall mount must be installed on dual wall studs or supporting framework. The wall to which the MWR is anchored must be capable of supporting five times the total weight of the mount and all attached equipment Fast Installation - Wall bracket can be placed on wall using convenient mounting guides for a hassle-free installation.
- To simplify installation, Chief's exclusive ClickConnect mounting system uses a lockable latch to safely secure display to the mount. Provides easy connect/disconnect without requring any tools. An audible click confirms panels are locked in place. Add a padlock to protect the display from theft.
- Integrated lateral shift up to 9" (4.5" left/right) of 16" stud system without disassembly.
- CableTrac System (cable management channels inside the arms) provides a fast and effective way to route video, audio and power cables.
Viewer Friendly
- Mount the display in portrait or landscape positions.
- Extends up to 24.875" from wall for viewing from any angle. Remains low profile in the home position.
- Exclusive Centris Select tilt mechanism lets you select the perfect tension for your screen's center of gravity to achieve smooth fingertip tilt. Screen angle stays set until you decide to re-adjust. Tilt is +5°/-15° and roll is +/-2.5°.
- Swivel up to 90° left or right (depending upon screen size).
- Provides a positive latch in home position to keep screen tight to wall.
Proven Quality
- UL-listed for proven strength.
- Mount goes through a series of rigorous tests to ensure a safe and secure solution.
- Backed by a 10-year warranty to ensure that you are receiving the best quality product.
UPC: 841872051857 In the Box Chief MWR-6000B Single Swing Arm Wall Mount (Black) MWR-6000B Wall Mount 2 x Cover Plates 4 x End Caps Adjustment Wrench 12 x Tie Wraps 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief MWR-6000B Single Swing Arm Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief MWR6000B Specs | | | Supported Weight Capacity | 125 lb / 56.7 kg | | Mounting-Hole Pattern | 100 x 100 mm | | Number of Displays Supported | 1 | | | | Lateral Shift | 2.3" / 5.7 cm | | Orientation | Landscape, Portrait | | | | Construction Material | Steel | | Distance from Mounting Surface | 3.4 to 24.9" / 8.6 to 63.2 cm | | Dimensions | 23.6 x 18 x 3.4" / 60 x 45.7 x 9 cm | | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 35.0 x 23.75 x 7.25" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
