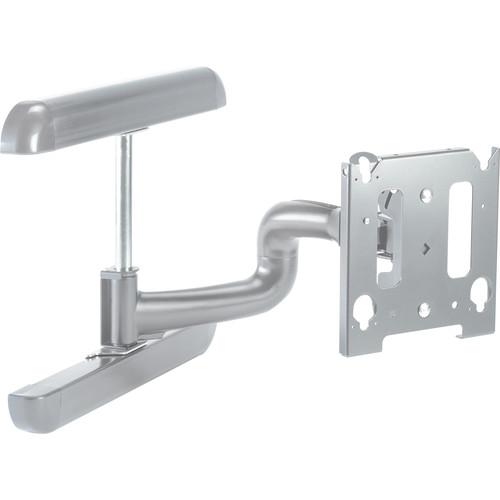

User Manual for Chief MWR-SKUS Flat Panel Swing Arm Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief MWR-SKUS Flat Panel Swing Arm
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief MWR-SKUS Flat Panel Swing Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The MWR-SKUS Flat Panel Swing Arm Wall Mount (Silver) from Chief is a sturdy adjustable mount which can hold monitors up to 125 lbs. The adjustable swing arm can extend up to 24.88" (63.2cm) from the wall or return to a low profile position close to the wall or a no-profile position when combined with the optional PAC500. The MWR-SKUS also has up to 15° of pitch adjustment with fingertip adjustments via Centris.To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. - Extends 24.875" from wall and remains low profile in the home position; Aesthetic Design - Curved arms provide a sleek look - Mounts in either Portrait or Landscape orientation
- Q-Latch Mounting System simplifies installation - Offers quick connect/disconnect; Secures display with a latching flag; Includes integrated security with the addition of a padlock
- Integrated lateral shift up to 9" of shift left or right of 16" centers
- CableTrac System provides a fast and effective way to route cables
- Centris centered tilt provides fingertip tilt from 0-15°
In the Box Chief MWR-SKUS Flat Panel Swing Arm Wall Mount (Up to 50") (Silver) 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief MWR-SKUS Flat Panel Swing Arm Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief MWRSKUS Specs | | | Supported Screen Sizes | Up to 50" / 127.0 cm | | Supported Weight Capacity | 125 lb / 56.7 kg | | Mounting-Hole Pattern | 200 x 200 to 600 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | 0 to +15
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
