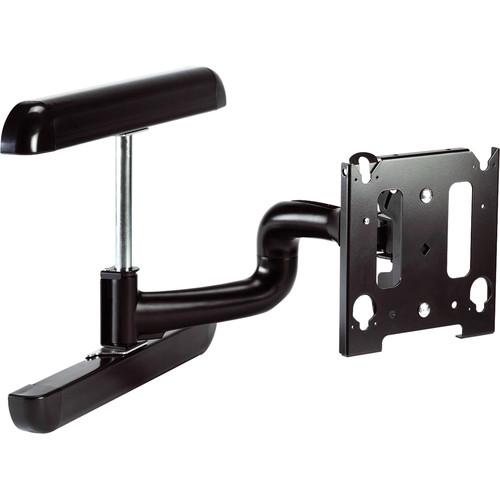

User Manual for Chief MWRUB Universal Swing Arm Mount for 30 to 55" Displays Click to enlarge the picture
Contents of the user manual for the Chief MWRUB Universal Swing Arm Mount
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief MWRUB Universal Swing Arm Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The black Chief MWRUB Universal Swing Arm Mount is designed to mount flat-panel displays measuring 30 to 55" with mounting patterns from 100 x 100 to 709 x 431mm and has a maximum load capacity of 125 lb. Its distance from the wall can range from 3.38 to 24.88" and it provides -15 to 5° tilt, ±2° roll, and ±6" lateral shift adjustments. - Swivel up to 90° left or right (depending upon screen size)
- Extends 24.9" from wall and retains a low profile in the retracted position
- Mounts in either portrait or landscape orientation
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Includes integrated security with the addition of a padlock
- Integrated lateral shift up to 6" left or right
- CableTrac System provides cable management
- Centris Technology gravity centered tilt provides fingertip tilt -15 to 5°
UPC: 841872101637 In the Box Chief MWRUB Universal Swing Arm Mount for 30 to 55" Displays (Black) Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief MWRUB Universal Swing Arm Mount for 30 to 55" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief MWR-U Specs | | | Supported Screen Sizes | 30 to 55" / 76.2 to 139.7 cm | | Supported Weight Capacity | 125 lb / 56.7 kg | | Mounting-Hole Pattern | 100 x 100 to 709 x 431 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -15 to +5
