User Manual for Chief OB1U Over-Whiteboard Interactive Display Mount Click to enlarge the picture
Contents of the user manual for the Chief OB1U Over-Whiteboard Interactive Display Mount
- Product category: Monitor Floor Stands Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Floor Stands
 |
User manual for the Chief OB1U Over-Whiteboard Interactive Display Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

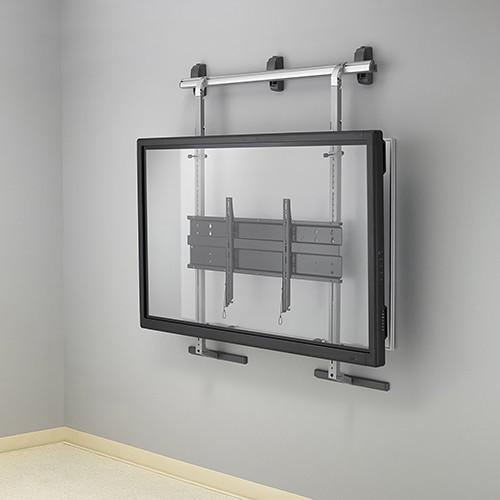

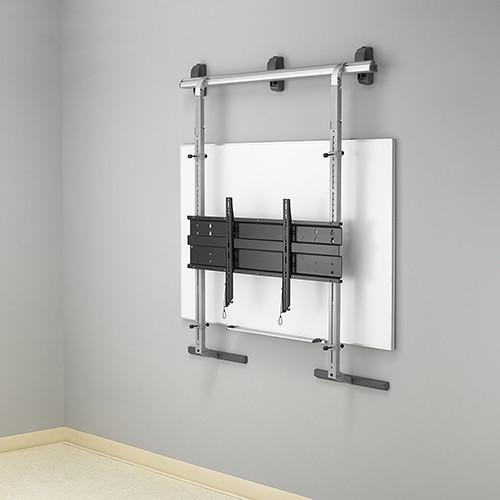

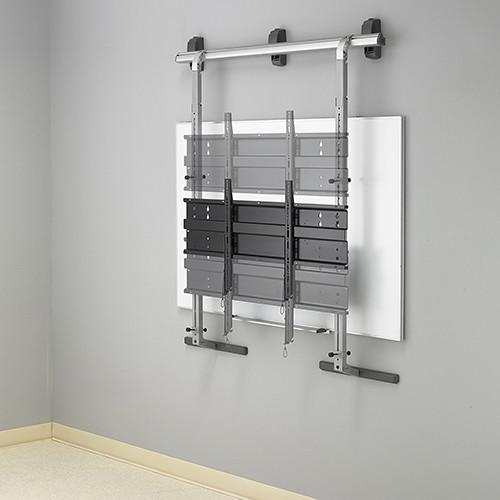

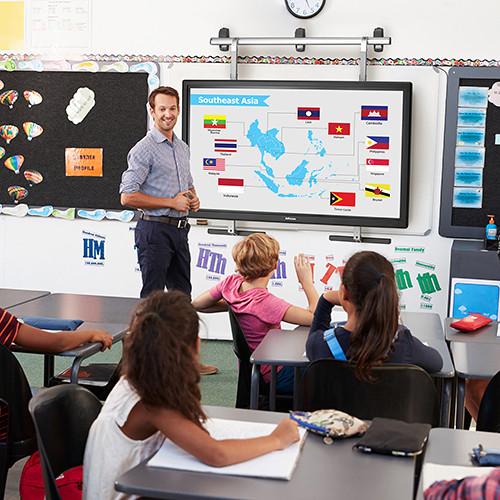

Product description Upgrade your classroom while retaining its original equipment with the Chief OB1U Over-Whiteboard Interactive Display Mount. It allows you to install an interactive display in front of an existing blackboard, whiteboard, map, or other similarly sized classroom feature. The mount supports displays up to 310 lb with VESA patterns ranging from 400 x 100 to 1020 x 500mm and provides lateral shift, up to 26" of display height adjustment, and up to 1.5° of plumb adjustment. It can install on either two or three studs and features telescoping legs that enable the mount to avoid other classroom obstacles. -
- Interface brackets mount directly to your display, then hang on a single rail-style cross-bracket
- Installs onto various wall types, including wood, concrete, steel, and cinder block
- Flexible wall assembly anchoring points help ensure that at least two studs are used

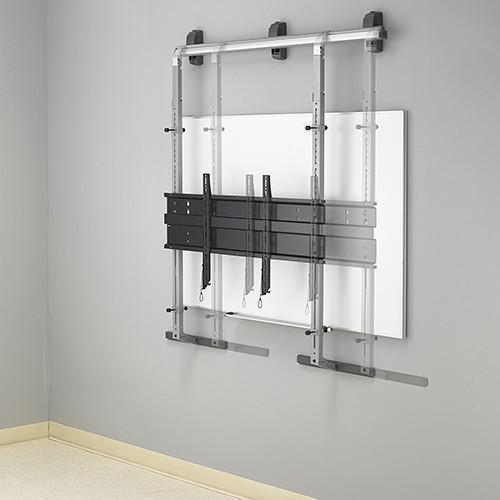

- Integrated lateral shift allows for left/right adjustment
- Plumb adjustment up to 1.5° to compensate for uneven walls
- Telescoping legs allow the mount to be adjusted around classroom obstacles
In the Box Chief OB1U Over-Whiteboard Interactive Display Mount Assembly Hardware Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief OB1U Over-Whiteboard Interactive Display Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief OB1U Specs | VESA Compatibility | 400 x 100 to 1020 x 500 mm
Up to 1020 x 600 mm with Optional Adapter | | Weight Capacity | 310 lb / 140.6 kg | | Display Height Adjustment | 26" / 66 cm | | Plumb Adjustment | Up to 1.5° | | Wall Clearance | Minimum: 4" / 102 mm | | Installation Requirements | Wood, Concrete, Steel, or Cinder Block Wall | | Spacing | Studs: 16" / 40.64 cm On-Center or 24" / 60.96 cm On-Center | | Dimensions (W x H x D) | 55.25 x 61.1 to 75.1 x 6.3" / 140.3 x 155.2 to 190.8 x 16 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 51.2 lb | | Box Dimensions (LxWxH) | 52.2 x 12.1 x 8.2" |
