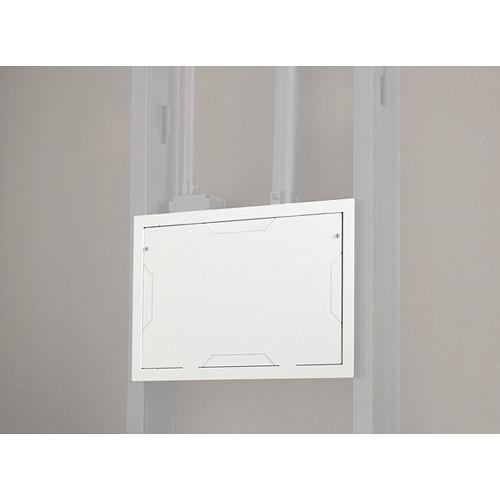

User Manual for Chief PAC525FW In-Wall Storage Box with Flange Click to enlarge the picture
Contents of the user manual for the Chief PAC525FW In-Wall Storage Box with
- Product category: Mount Add-Ons Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Mount Add-Ons
|
User manual for the Chief PAC525FW In-Wall Storage Box with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description Organize your A/V wires behind your display with the white Chief PAC525FW In-Wall Storage Box with Flange It creates a recessed space in the wall for routing excess cables and for attaching surge protectors and power conditioners. The storage box also includes a flange for drywall mounting capability. The In-Wall Storage Box is compatible with the Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts. - Breakaway edge allows compatibility with both 3.5" studs and 2.5" studs
- Pre- and post-construction installation options
- Knockouts for single gang outlets and 1.25", 1", and 0.5" conduits
- Drywall and stud mountable
- Integrated universal zip tie anchor points
- Installation in landscape and portrait orientations
- Stores a variety of A/V components
- Paintable, enabling the flange to blend into nearly any environment
UPC: 841872161396 In the Box Chief PAC525FW In-Wall Storage Box with Flange (White) Box Frame Temporary Cover Installation Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief PAC525FW In-Wall Storage Box with Flange in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PAC525FW Specs | Compatibility | Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, FUSION wall mounts | | Weight Capacity | 10 lb (4.5 kg) | | Approvals and Compliance | None | | Dimensions | Overall: 9 x 14.3 x 3.9" (22.9 x 36.2 x 9.9 cm)
Install Box with Flange: 15.4 x 10.3" (39.1 x 26.1 cm)
Diameter of Knock-Outs: 1.7" (4.4 cm); 1.4" (3.5 cm); 0.9" (2.2 cm)
Zip Tie Anchor Hooks: 9 x 0.8 x 0.3" (1.9 x 0.6 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 19.5 x 14.5 x 4.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
