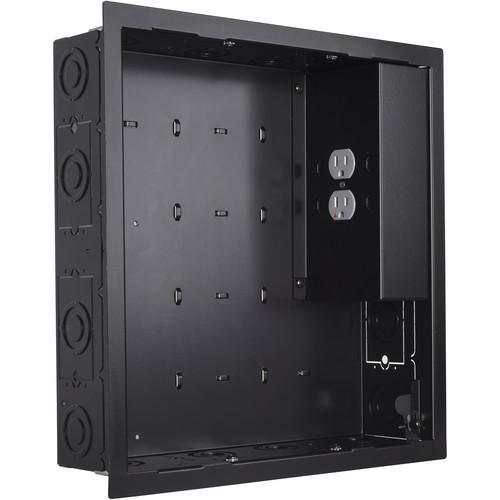

User Manual for Chief PAC526 In-Wall Storage Box with 2-Receptacle Filter & Surge Protector Click to enlarge the picture
Contents of the user manual for the Chief PAC526 In-Wall Storage Box with
- Product category: Wall Plates & Installation Boxes Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Wall Plates & Installation Boxes
|
User manual for the Chief PAC526 In-Wall Storage Box with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description Hide your wiring and compact A/V equipment discreetly with the black Chief PAC526 In-Wall Storage Box with 2-Receptacle Filter & Surge Protector. It has two surge-protected and EMI-filtered outlets pre-installed to help simplify your installation. It is rated for 125 VAC, 60 Hz, 15A and is designed for use with the Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts. - In-Wall Storage Box Features
-
- Pre- and post-construction installation options
- Drywall- and stud- mountable
- Knockouts for single-gang outlets and 1.25", 1", and 0.5" conduits
- Integrated zip-tie anchor points
- Landscape/portrait installation
- Stores a variety of A/V components
- Paintable flange to blend in nearly any environment
- Surge & Filter Module
-
- Non-volatile spike protection with LED power indicator
- Non-sacrificial, multi-stage technology by SurgeX
- Non-current-limiting design passes full power on a regular circuit; redundant protection circuits
- Engineered to improve the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes, and electronic noise events that can cause gear degradation and downtime
- Line filter helps reduce common and differential mode noise by up to 40 dB
- Ferrite toroid-based EMI filter
- Designed to withstand up to 240 VAC continuous without damage or loss of protection
UPC: 841872167060 In the Box Chief PAC526 In-Wall Storage Box with 2-Receptacle Filter & Surge Protector (Black) Installation Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief PAC526 In-Wall Storage Box with 2-Receptacle Filter & Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PAC526FBP2 Specs | Compatible Mounts | Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts | | Number of Outlets | 2 | | Weight Capacity | 10 lb / 4.5 kg | | Surge Protection | Type 3 Surge Protective Device (SPD) | | Voltage Protection Rating | L-N, N-G: 600 V
L-G: 800 V | | Maximum Continuous Current | 240 V | | Nominal Discharge Current | 3 kA in | | Short Circuit Rating | 5 kA | | Certification | UL 2416 Listed for installation of A/V, IT, & communication technology equipment | | Voltage Rating | 125 VAC, 60 Hz, 15 A | | Power Output | 15 A, 1875 W continuous | | Power Consumption | <0.5 W | | Max Ambient Temp | 104°F / 40°C | | Overall Dimensions (W x H x D) | 15.4 x 15.51 x 3.88" / 391 x 34 x 98 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 13.95 lb | | Box Dimensions (LxWxH) | 19.7 x 19.7 x 5.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
