User Manual for Chief PAC527 XL In-Wall Storage Box with Flange Click to enlarge the picture
Contents of the user manual for the Chief PAC527 XL In-Wall Storage Box
- Product category: Wall Plates & Installation Boxes Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Wall Plates & Installation Boxes
 |
User manual for the Chief PAC527 XL In-Wall Storage Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

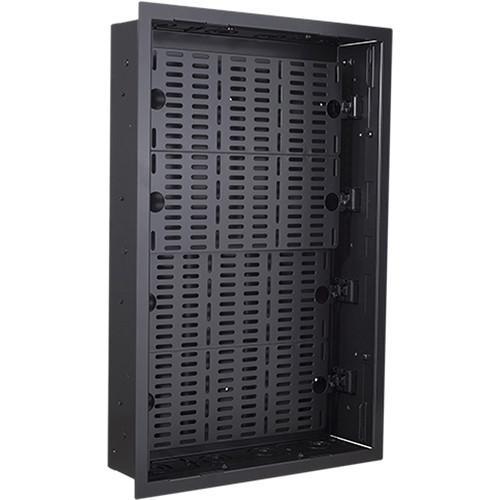

Product description Provided by third party: The PAC527 In-Wall Storage Box Series provides a large, organizable space for installers to accommodate difficult equipment port locations, power cords and more. The backplane breaks into four sections that can be mounted on three different levels to organize, layer and attach AV equipment. Breakaway edges provide multi-depth stud compatibility.
- Key Features
-
- Enclosure UL 2416 Listed for installation of AV, IT & Communication Technology Equipment

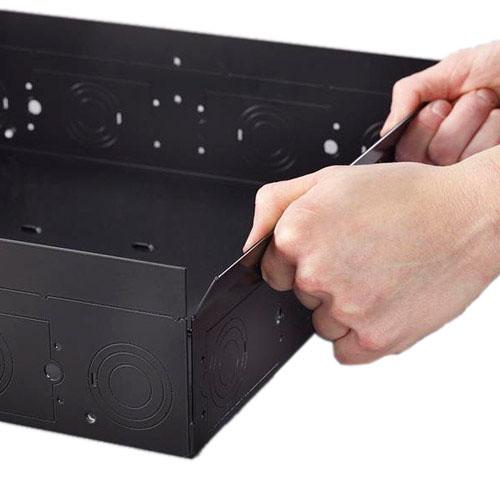

- Break away edges change the depth of the box in order to match either 3.5" or 2.5" studs (89 or 64 mm)
- Included universal backplane can be mounted at 3 different depths in 4 different locations

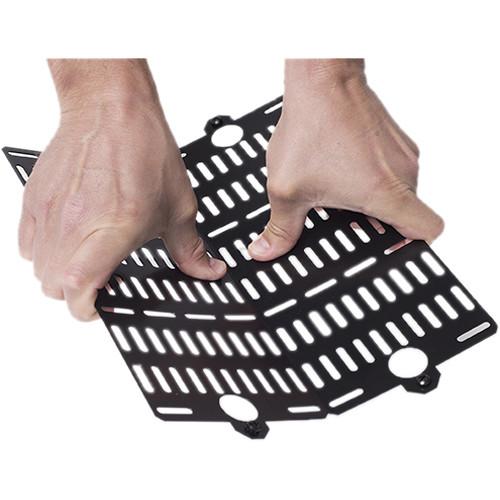

- Backplane ships in two sections and can be broken down into a total of 4 smaller sections
- Allows for components to be mounted in advance before attaching wires on site
- Printable backplane template for planning purposes
- Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
- Knockouts for single gang outlets and 1-1/4", 1", &
|
Upload User Manual
Have you got an user manual for the Chief PAC527 XL In-Wall Storage Box with Flange in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PAC527F Specs | | | Width | 15.4 in | | Depth | 3.9 in | | Height | 23.3 in | | Color | Black | | Package Content | Backplanes, black flange | | | | Type | Storage box | | Recommended Use | Audio/video components | | Placing / Mounting | In-wall mounted | | Max Load Weight | 50 lbs | | | | Service & Support | Limited warranty - 10 years | | | | Package Weight | 20.06 lb | | Box Dimensions (LxWxH) | 30.0 x 22.5 x 5.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
