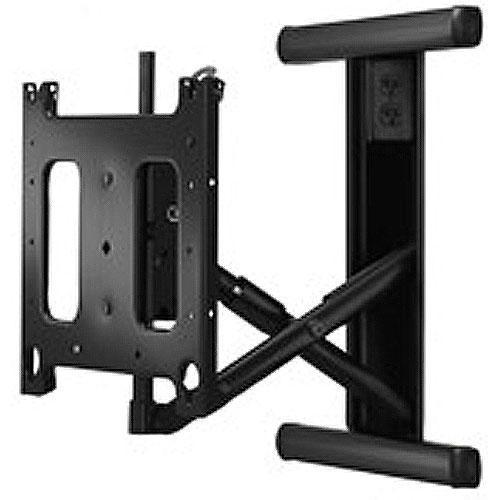

Product description The state-of-the-art Chief PIWRF2000B is a fully integrated, pre-assembled swing arm, fitting flush inside the wall with a low-profile finish. Designed for 42-65" flat panel displays up to 200 lbs, the PIWRF2000B allows perfect TV placement during installation without cutting studs or having to retrofit existing wall structures. Simply cut out the drywall at the desired wall location and install the in-wall box. In addition, installation is made easier with built-in lateral shift and height adjustment. Integrated cable management and a trim kit are provided for an aesthetic and low-profile finish of less than 2". Users have increased positioning flexibility of their display with wide viewing angles. Optimal viewing is achieved with 40° of left/right swivel, up to 15" (381mm) of extension, fingertip tilt, and ultra smooth movement. This is a custom mount and requires a PSB-series interface bracket. To determine which is the proper bracket for your flat panel TV or monitor, visit Chief's MountFinder Pro.xqdzacaxecdedzaauqrrbcydrf Easy Installation - Comes complete, no assembly required.
- Includes template for easy measuring and simplified post-construction installation. Includes all wood stud installation hardware.
- Center flat panel on wall at any position on wall between 16" center studs without cutting studs. No header/footer necessary.
- Exclusive ClickConnect mounting system provides easy connect/disconnect without requring any tools. An audible click confirms panels are locked in place. Add a padlock to protect the display from theft.
- Lateral shift allows perfect centering of flat panel between 16" center stud system. Can accommodate up to 3-1/2" of lateral shift adjustment (right or left display offset from center of studs).
- Built-in cable management channels provide a clean installation.
- Designed to accommodate up to 1" of display height adjustment.
- The mount allows for the horizontal alignment (Roll) of the display to be adjusted up to 2° right or left to level the display after installing.
Viewing Conveniences - Compact (only 8" wide) low profile design ensures mount remains concealed behind the screen.
- Optimal viewing is achieved with 40° of left/right swivel and ultra-smooth extension up to 15".
- Centris technology uses the center of gravity to achieve smooth fingertip tilt of +/-15°. Screen angle stays set until you decide to re-adjust.
UPC: 841872110660 In the Box Chief PIWRF2000B In-Wall Swing Arm Mount Upper and Lower Mounting Rails Spacers (4) End Caps (4) Upper and Lower Channel Covers Trim Pieces (2) Lag Screws (4) Washers (4) Flanged Nuts (4) Cable Tie Clips (8) Cable Covers (2) Table of Contents
|
