User Manual for Chief PNR-2000B Large Flat Panel Dual Swing Arm Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief PNR-2000B Large Flat Panel Dual
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief PNR-2000B Large Flat Panel Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

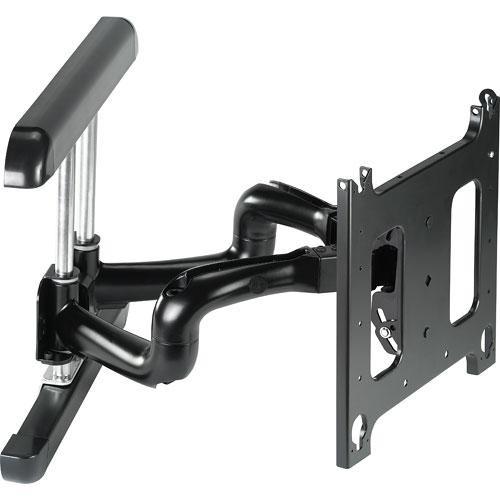

Product description View large flat panel displays up to 86" or 200 lbs. from any angle with the Chief PNR-2000B Dual Swing Arm Wall Mount. Rugged, versatile, and installer-friendly, the PNR is designed for installations that require a solid dual swing arm with shorter extension. The dual arms extend up to 24-7/8" from the wall, pivot up to 90° left or right of center, and fold down to only 3-1/4" in the home position.The PNR-2000B was designed for fast installation. After drawing the plumb line and installing the two top lag bolts into the dual wall studs, the installer hangs the PNR-2000B on its top bracket and installs two lag bolts in the bottom bracket. Next, the installer makes the height adjustment, mounts the display, and connects the power/audio/video cables, which are diverted into the built-in path in the swing-out arms. After making the lateral, rotational, and tilt adjustments, the installation process is complete.To confirm the compatibility of this mount with your flat panel TV or monitor, please refer to the manufacturer's website. Fast Installation - Wall bracket can be placed on wall using convenient mounting guides for a hassle-free installation.
- The PNR-2000B is shipped with the support posts for the dual arms centered in the mount. The support posts can be moved laterally right or left of center to readily accommodate sites with limited wall space. The mount also has post-installation height adjustment and tilt adjustment that spans 5° up and 15° down for installation flexibility.
- Exclusive ClickConnect mounting system provides easy connect/disconnect without requring any tools. An audible click confirms panels are locked in place. Add a padlock to protect the display from theft.
- Q-Latch Mounting System simplifies installation. It uses a lockable latch to safely secure display to the mount. Provides quick display connect/disconnect and is compatible with multiple accessories.
- Integrated lateral shift up to 9" (4.5" left/right) of 16" stud system without disassembly.
- Built-in cable management channels inside the arms provides quick and easy routing of cables.
- Post-installation height adjustment up to 1" (25.4mm) for installation flexibility.
- Wall protection rubber stops protect the wall when arms are collapsed.
Viewer Friendly
- Extends 25" from the wall, only 3-1/4" deep when collapsed.
- Independently adjustable tension at pivot points provides customized control.
- Exclusive Centris Select tilt mechanism lets you select the perfect tension for your screen's center of gravity to achieve smooth fingertip tilt. Screen angle stays set until you decide to re-adjust.
- Swivel up to 90° left or right (depending upon screen size).
- Provides positive latch in home position to keep screen tight to wall.
Proven Quality
- UL-listed for proven strength. Solidly designed with cast components and steel uprights to securely hold displays up to 200 lbs.
- Mount goes through a series of rigorous tests to ensure a safe and secure installation.
- Backed by a 10-year warranty to ensure that you are receiving the best quality product.
UPC: 841872046396 In the Box Chief PNR-2000B Large Flat Panel Dual Swing Arm Wall Mount (Black) PNR-2000B Wall Mount 2 x Cover Plates 4 x End Caps 12 x Tie-wraps Wrench, Adjustment Bar, Adjustment 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief PNR-2000B Large Flat Panel Dual Swing Arm Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PNR2000B Specs | | | Supported Screen Sizes | Up to 42 to 86" / 106.7 to 218.4 cm | | Supported Weight Capacity | 200 lb / 90.7 kg | | Number of Displays Supported | 1 | | | | Lateral Shift | 9.0" / 22.9 cm | | Orientation | Landscape | | | | Construction Material | Steel | | Distance from Mounting Surface | 3.0 to 24.9" / 7.6 to 63.2 cm | | Dimensions | 27.3 x 19.5 x 3" / 69.2 x 49.5 x 7.6 cm | | | | Package Weight | 52.0 lb | | Box Dimensions (LxWxH) | 42.0 x 26.0 x 6.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
|
| Request for user manual |
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:
I’m looking for a manual / Request for manual
