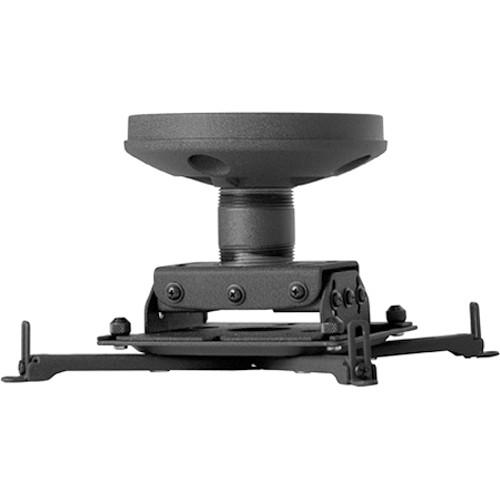

User Manual for Chief Projector Mount Kit Click to enlarge the picture
Contents of the user manual for the Chief Projector Mount Kit
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief Projector Mount Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief KITPD003W Projector Mount Kit takes the guesswork out of assembling everything you need to ceiling mount your video projector. The kit includes the RPAU Universal Projector Mount coupled with a 3" extension, both designed to work with a wide variety of projectors and installation scenarios. Finally, the included Speed Connect Ceiling Plate provides secure an installation in ceilings made from a solid material. Mount - Ships with a universal bracket to fit most inverted projectors on the market.
- Independent roll, pitch and yaw for quick and precise projector image registration.
- Quick projector connect and disconnect with convenient lamp and filter access on most projectors.
- Maintains registration when disconnected and doesn't affect preset adjustments.
- All-Points Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft.
- Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column.
- Integrated cable management through top of mount without additional accessories.
3" (7.6 cm) Extension Column - Aluminum extension column features easy installation and maximum strength.
- Consists of 1.5" NPT column, threaded on both ends.
- Use in combination with any Chief 1.5" NPT ceiling plate or other accessory.
Speed Connect Ceiling Plate - For mounting into solid ceiling.
- Low-profile, aesthetic design.
- Integrated cable management - allows cables to exit the top of the plate through the cable exit port.
- All-Points Security System exclusive locking hardware at column connection point to protect against theft.
- All-Points Security System provides exclusive locking hardware at column connection point to protect against theft.
- Aluminum construction for optimal strength in a lightweight design.
UPC: 841872118833 In the Box Chief Projector Mount Kit RPAU Inverted LCD/DLP Projector Ceiling Mount (Black) vvyudfbetfrbbfdwwvuazvzebdtr CMS-003 3" Speed-Connect Fixed Extension Column (Black) CMS-115 Speed-Connect Ceiling Plate (Black) 10 Year Manufacturer's Warranty on Materials
1 Year Manufacturer's Warranty on Electrical Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Projector Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief KITPD003W Specs | Weight | Mount and Extension: Not Available from Manufacturer
Ceiling Plate: 5 lbs (2.3 kg) | | Color | Mount and Extension: Black
Ceiling Plate: Black | | Dimensions | Mount: Not Available from Manufacturer
Extension: 3" (7.6 cm) | | Weight Capacity | Mount: 50 lbs (22.7 kg)
Extension: 500 lbs (226.8 kg)
Ceiling Plate: 500 lbs (226.8 kg) | | Movements | Mount
Roll: +/-4°
Pitch: +/-25°
Yaw: 360° | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 15.0 x 11.0 x 7.0" |
