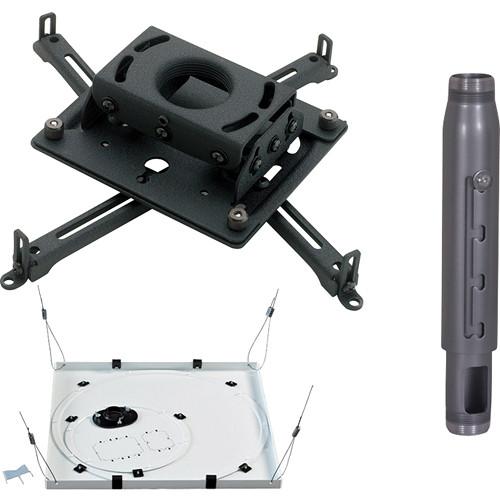

User Manual for Chief Projector Mount Kit Click to enlarge the picture
Contents of the user manual for the Chief Projector Mount Kit
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief Projector Mount Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief KITPS012018 Projector Mount Kit takes the guesswork out of assembling everything you need to ceiling mount your video projector. The kit includes the RPAU Universal Projector Mount coupled with a 12-18" adjustable extension, both designed to work with a wide variety of projectors and installation scenarios. Finally, the included Tile Suspended Ceiling Kit provides flexible cables, anchors and hardware necessary for a clean-looking installation in 2 x 2' or 2 x 4' (61 x 61 cm or 61 x 122 cm) ceiling tile. Mount - Ships with a universal bracket to fit most inverted projectors on the market.
- Independent roll, pitch and yaw for quick and precise projector image registration.
- Quick projector connect and disconnect with convenient lamp and filter access on most projectors.
- Maintains registration when disconnected and doesn't affect preset adjustments.
- All-Points Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft.
- Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column.
- Integrated cable management through top of mount without additional accessories.
12-18" Adjustable Extension Column - Provides height adjustment in 1" (2.54 cm) increments.
- Notched design for adjustment without disassembly.
- Flow-through cable management with cable exit port.
- Includes set screw for added stability.
- Consists of 1.5" NPT column, threaded on both ends.
- Use in combination with any Chief 1.5" NPT ceiling plate or other accessory.
Above Tile Ceiling Kit - WireVice Cable Suspension System for quick and easy tie-off.
- TwisTile Ceiling Tile Cutter easily pierces a circular hole in the ceiling tile for extension column.
- Flexible solution provides infinite column placement within a 2' x 2' or 2' x 4' ceiling tile. (61 x 61 cm or 61 x 122 cm)
- Single and dual electrical outlet cutouts.
- All-Points Security System provides exclusive locking hardware at column connection point to protect against theft.
- Includes (4) 25' (7.6 m) flexible cables, (4) wood eyebolts, (4) concrete anchors and a chrome trim ring.
- Fits 24" (61 cm) wide ceiling tile grids.
- 1.5" (3.8 cm) NPT compatible.
UPC: 841872116082 In the Box Chief Projector Mount Kit RPAU Inverted LCD/DLP Projector Ceiling Mount (Black) CMS-012018S 12-18" Speed-Connect Adjustable Extension Column (Silver) CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White) 10 Year Manufacturer's Warranty on Materials
1 Year Manufacturer's Warranty on Electrical Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Projector Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief KITPS012018 Specs | Weight | Mount and Extension: Not Available from Manufacturer
Ceiling Kit: 5 lbs (2.3 kg) | | Color | Mount and Extension: Black
Ceiling Kit: White | | Dimensions | Mount: Not Available from Manufacturer
Extension: 12 - 18" (30.5-46 cm) | | Weight Capacity | Mount: 50 lbs (22.7 kg)
Extension: 500 lbs (226.8 kg)
Ceiling Kit: 50 lbs (22.7 kg) | | Movements | Mount
Roll: +/-4°
Pitch: +/-25°
Yaw: 360° | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 28.0 x 12.5 x 6.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
