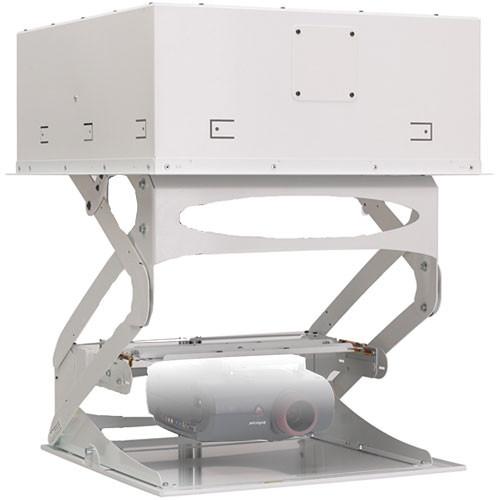

User Manual for Chief Projector Mounts - LCD DLP CRT Smart-Lift SL-236 Click to enlarge the picture
Contents of the user manual for the Chief Projector Mounts - LCD DLP
- Product category: Projector Lifts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Lifts
|
User manual for the Chief Projector Mounts - LCD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description Chief's SL-236FD SMART-LIFT is an easy-to-install, finished ceiling-mounted video projector lift. Perfect for homes, the SL-236FD is marked by its smooth and quiet movement and ability to fit into only eleven inches of ceiling clearance. The ability to control fore/aft, left/right projector positioning further adds to the unit's flexibility. The SL-236FD is plenum-rated, and easily accommodates multiple control options, such as infrared remote control and radio frequency remote control. - Four Mounting Methods
-
- Four 3/8" Threaded Rods; allows for quick and accurate leveling. Use with SMA-650 accessory.
- 1 and a 1/2" Threaded Extension Column; allows adjustments (2 and a 1/2" fore/aft and 2 and a 1/2" left/right) for exact placement. Must use SMA-600 accessory.
- Joist tabs are built-in for side mounting directly to wood framed ceilings commonly found in residential applications.
- Suspend by cables. Use this option when the distance from the structure or overhead equipment prevents more traditional mounting methods. Must use SMA-650 accessory.
- Plenum-Rated
- The SL-236FD Smart Lift is Plenum-Rated, meaning that its wires and mechanics are more heat resistant and safer than traditional electronics for the area above acoustic tile ceilings.
- Finished Ceiling Mounting
- The SL-236FD can be mounted on finished ceilings, or the traditional ceilings one finds in a residential home.
- Quick Disconnect/Reconnect
- The SL-236FD is not only quick to descend, it's also quite easy to hook up and disconnect. This allows for a relatively smooth lift installation and de-installation, a particularly valuable feature when using at trade shows, or on-the-go.
- Cradle Positioning
- You can position the SL-236FD's cradle vertically. The projector also has fore/aft, left/right cradle adjusted. The yaw, pitch and roll can also be adjusted as well.
- Low Voltage
- The SL-236FD will accept 5-30 VAC/VDC for triggering commands.
- Multiple Control Options
- The SL-236FD works with a wide variety of controls not included with the projector set. Among these control types are: Infrared Remote Control, Radio Frequency Remote Control and Integrated Control (AMX/Crestron).
- Travel Distance
- The SL-236FD has 36" of travel distance, with three stopping positions: up, show and service.
UPC: 841872024509 In the Box Chief Projector Mounts - LCD/DLP/CRT Smart-Lift SL-236 Single Momentary Push Button Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Projector Mounts - LCD DLP CRT Smart-Lift SL-236 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief SL236FD Specs | Mounting Source Opening (WxD) | 25.5 x 27.75"
641.35 mm x 704.85 mm | | Closure Panel Dimension (WxD) | 24 x 24"
609.60 mm x 609.60 mm | | Max Equipment Size | 9.5 x 20 x 23.25"
241.3 mm x 533.40 mm x 590.55 mm | | Travel Distance | 36"
914.40 mm | | Low Voltage | Will accept 5-30 VAC/VDC for triggering commands | | Color | White | | Power Requirements | 100-125 VAC, 60 Hz, 1.5 A | | Weight | 85 lb
38.46 kg | | | | Package Weight | 120.0 lb | | Box Dimensions (LxWxH) | 35.5 x 31.5 x 17.0" |
