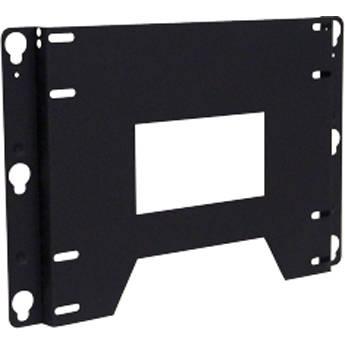

User Manual for Chief PSM2430 Flat Panel Custom Fixed Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief PSM2430 Flat Panel Custom Fixed
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief PSM2430 Flat Panel Custom Fixed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief PSM2430 Flat Panel Custom Fixed Wall Mount is designed for mounting displays up to 65" or 175 lbs. With a steel construction and seismic rated for safer installation the PSM2430 is a one-piece custom bracket that mounts flat panel displays in landscape view quickly and securely. The PSM2430 also features a low-profile, a lockable latch, and the option of adding multiple accessories. To confirm the compatibility of this mount with your flat panel display and to determine if an interface bracket must be ordered please visit Chief's MountFinder Pro. - Easy Installation
-
- Custom one-piece bracket design
- Offers quick installation and quick release
- Multiple optional accessories provide solutions for even the most difficult installation
- Exclusive Q-Latch Mounting System secures the large flat panel display with a lockable latch
- Safe and Secure
-
- Seismic rated for safer installations
- Compatible with locking flag accessories PAC130 and PAC135
- Sturdy steel construction - Wall mount uses more surface area for balance and stability
- Viewer Friendly
-
- Display installs in landscape view
- Low-profile - 1" standard mount depth (may vary) - mount designed to meet manufacturer requirements for more/less airspace
- Proven Quality
-
- UL-listed for proven strength
- Mount goes through a series of rigorous tests to ensure a safe and secure solution
- Backed by a 10-year warranty to ensure that you are receiving the best quality product
In the Box Chief PSM2430 Flat Panel Custom Fixed Wall Mount 4 x M8 x 25mm Button Head Cap Screws 4 x 5/16" Flat Washers 10-24 x 1/2" Flat Head Undercut Screw M5 Hex Key 4 x Mounting Buttons 4 x 5/16" x 2 1/2" Hex Head Lag Screws Flag Extender 10-24 Nylock Nut User Manual 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief PSM2430 Flat Panel Custom Fixed Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PSM2430 Specs | | | Supported Screen Sizes | Up to 65" / 165.1 cm | | Supported Weight Capacity | 175 lb / 79 kg | | Number of Displays Supported | 1 | | | | Construction Material | Steel | | Distance from Mounting Surface | 1.0" / 2.5 cm | | | | Package Weight | 11.55 lb | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 2.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
