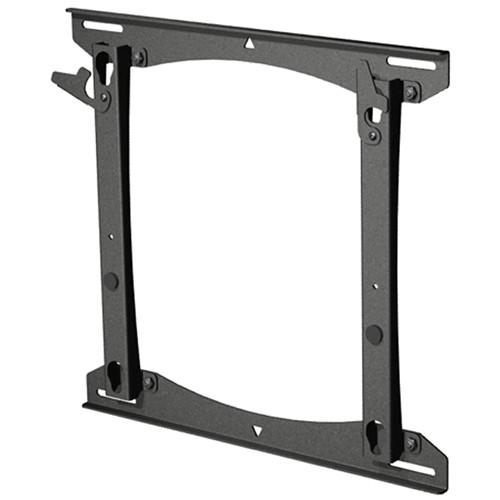

User Manual for Chief PST-16 Flat Panel Fixed Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief PST-16 Flat Panel Fixed Wall
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief PST-16 Flat Panel Fixed Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief PST-16 is a low profile, easy-to-install, fixed wall mount for large flat panel displays up to 71" or 200 lbs. Ideal for digital display or retail applications, it allows for portrait or landscape flat panel installation. UL-listed for proven strength, it features integrated lateral shift, open wall plate design and heavy-duty construction. Also offers installer-friendly features such as Chief's Q-Latch Mounting and Rapid Leveling.To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. Fast Installation - Teardrop holes in the mount allow for quick connect/disconnect of the screen, simplifying installation and maintenance processes.
- The top and bottom mounting brackets are adaptable to supporting framework with wood studs that are 16", 20" or 24" on center.
- For postioning flexibility, offers integrated lateral shift up to 8" (4" left/right) of center on dual 16" stud system without disassembly, and up to 1" (.05" left/right) of center on dual 24" wood studs.
- Q-Latch Mounting System simplifies installation. It uses a lockable latch to safely secure display to the mount. Provides quick display connect/disconnect and is compatible with multiple accessories.
- After installing the flat screen on the mount, the screen can be locked in place using the convenient locking flag. A padlock can be used on the latching flag for added security.
- Hands-free leveling of mount on wall after installation.
- Expanded wall plate opening provides cable access and reduces risk of outlet interference.
Viewer Friendly
- Low profile design ensures the mount remains concealed behind the screen.
- Unique design provides cable access through sides of mount.
- Allows for portrait or landscape flat panel installation.
Proven Quality
- Heavy-duty construction with steel components for a rock-solid solution.
- UL-listed for proven strength.
- Mount goes through a series of rigorous tests to ensure a safe and secure solution.
- Backed by a 10-year warranty to ensure that you are receiving the best quality product.
In the Box Chief PST-16 Flat Panel Fixed Wall Mount (Up to 65" or 200 lbs) PST-16 Wall Mount 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief PST-16 Flat Panel Fixed Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PST16 Specs | | | Supported Screen Sizes | Up to 65" / 165.1 cm | | Supported Weight Capacity | 200 lb / 90.7 kg | | Number of Displays Supported | 1 | | | | Lateral Shift | 4.0" / 10.2 cm | | Orientation | Landscape, Portrait | | | | Construction Material | Steel | | Stud Distance | 16.0" / 40.6 cm
20.0" / 50.8 cm
24.0" / 61.0 cm | | Distance from Mounting Surface | 1.2" / 3.0 cm | | Dimensions | 26 x 18.38 x 1.31" / 660 x 467 x 33 mm | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 21.5 x 20.0 x 1.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
