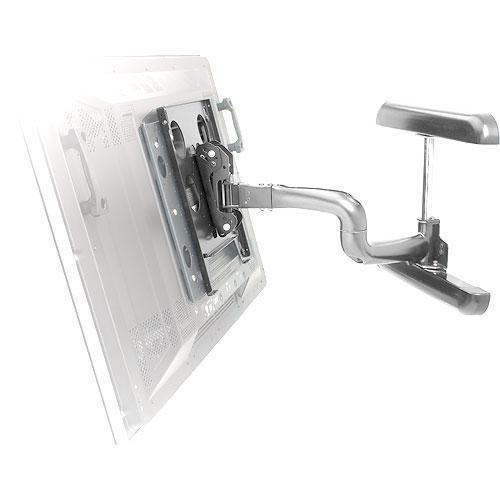

User Manual for Chief PWR-US Universal Flat Panel Single Swing Arm Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief PWR-US Universal Flat Panel Single
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief PWR-US Universal Flat Panel Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description View large flat panel displays up to 55" or 125 lbs from any angle with the Chief PWR-US Universal Swing Arm Wall Mount. Rugged and versatile, the arm extends 24-7/8" in length from the wall, pivots up to 90° left or right of center and collapses to 3-3/8" to provide ultimate flexibility. The PWR-US features tool-free Click Connect mounting system and Centris mechanism for fingertip tilt adjustments. Great for home entertainment or boardroom applications.The PWR-US includes a universal interface bracket making it compatible with hundreds of flat panel displays from 30-55" or 125 lbs. However, if you want to confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. Fast Installation - Wall bracket can be placed on wall using convenient mounting guides for a hassle-free installation.
- To simplify installation, Chief's exclusive ClickConnect mounting system uses a lockable latch to safely secure display to the mount. Provides easy connect/disconnect without requring any tools. An audible click confirms panels are locked in place. Add a padlock to protect the display from theft.
- Integrated lateral shift up to 9" (4.5" left/right) of 16" stud system without disassembly.
- CableTrac System (cable management channels inside the arms) provides a fast and effective way to route video, audio and power cables.
Viewer Friendly
- Mount the display in portrait or landscape positions.
- Extends up to 24.875" from wall for viewing from any angle. Remains low profile in the home position.
- Exclusive Centris Select tilt mechanism lets you select the perfect tension for your screen's center of gravity to achieve smooth fingertip tilt. Screen angle stays set until you decide to re-adjust. Tilt is +5°/-15° and roll is +/-2.5°.
- Swivel up to 90° left or right (depending upon screen size).
- Provides a positive latch in home position to keep screen tight to wall.
Proven Quality
- UL-listed for proven strength.
- Mount goes through a series of rigorous tests to ensure a safe and secure solution.
- Backed by a 10-year warranty to ensure that you are receiving the best quality product.
In the Box Chief PWR-US Universal Flat Panel Single Swing Arm Wall Mount (Silver) PWR-US Wall Mount 2 x Cover Plates 4 x End Caps 12 x Tiewraps 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief PWR-US Universal Flat Panel Single Swing Arm Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PWR-U Specs | | | Supported Screen Sizes | Up to 50" / 127.0 cm | | Supported Weight Capacity | 125 lb / 56.7 kg | | Mounting-Hole Pattern | 200 x 200 to 800 x 400 mm | | Number of Displays Supported | 1 | | | | Lateral Shift | 9.0" / 22.9 cm | | Orientation | Landscape, Portrait | | | | Construction Material | Steel | | Distance from Mounting Surface | 3.4 to 24.9" / 8.6 to 63.2 cm | | Dimensions | 23.6 x 18 x 3.4" / 60 x 45.7 x 9 cm | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 35.0 x 23.75 x 7.25" |
