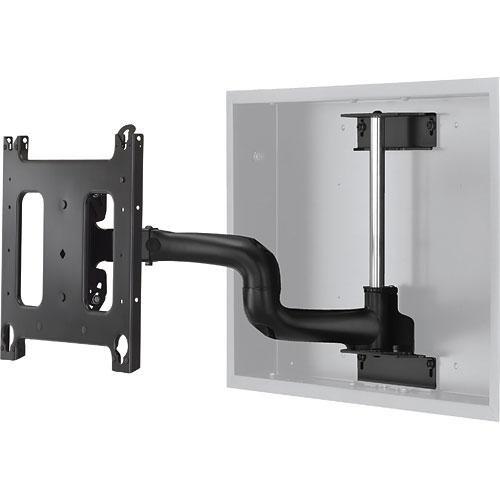

User Manual for Chief PWRIW2000B In-Wall Swing Arm Click to enlarge the picture
Contents of the user manual for the Chief PWRIW2000B In-Wall Swing Arm
- Product category: Monitor Wall Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Wall Mounts
|
User manual for the Chief PWRIW2000B In-Wall Swing Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief PWRIW2000B is an in-wall swing arm designed to create a flush installation. Supporting flat panel displays up to 55" or 125 lbs, it ships fully assembled ready for fast installation into the PAC501 In-Wall Accessory. (Must be ordered separately). The PWRIW2000B is a custom mount that requires a PSB-series interface bracket. To confirm which bracket is compatible with your flat panel TV or monitor, visit Chief's MountFinder Pro.rfcefdctaeaaxzdcxvwztwfbwzwqtvysfw Easy Installation - Ships fully assembled to save on installation time.
- Easily installs into PAC501 In-Wall Accessory (must be ordered separately) to create an ultra low profile installation.
- To simplify installation, Chief's exclusive ClickConnect mounting system uses a lockable latch to safely secure display to the mount. Provides easy connect/disconnect without requring any tools. An audible click confirms panels are locked in place. Add a padlock to protect the display from theft.
- Holes are provided in the faceplate for use with a padlock or similar locking device, if desired. In addition, the pin and nut may be removed from the upper holes and moved to the lower holes for use as a more permanent locking device.
- Allows the horizontal alignment (Roll) of the display to be adjusted up to 2° right or left, to level the display after installing.
Viewing Conveniences - Low profile design ensures mount remains concealed behind the screen.
- Contoured swing arms are designed for smooth and effortless extension from 0.5 to 22", allowing viewing from any angle.
- Effortlessly adjust display using Centris fingertip tilt technology. Screen angle stays set until you decide to re-adjust.
UPC: 841872109206 In the Box Chief PWRIW2000B In-Wall Swing Arm (Black) Mounting Hardware 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief PWRIW2000B In-Wall Swing Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PWRIW2000B Specs | | | Number of Displays Supported | 1 | | | | Package Weight | 35.5 lb | | Box Dimensions (LxWxH) | 34.0 x 24.0 x 8.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
