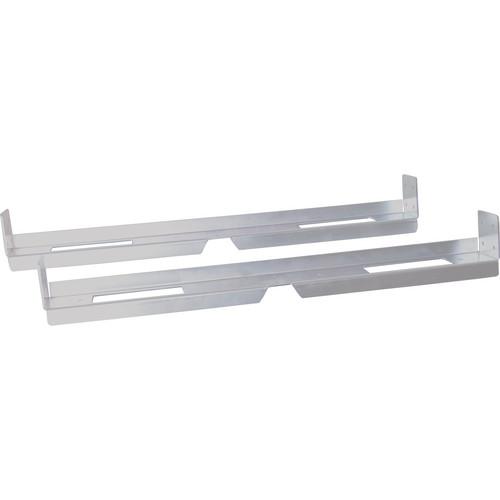

User Manual for Chief PXR In-wall Header Footer Kit Click to enlarge the picture
Contents of the user manual for the Chief PXR In-wall Header Footer Kit
- Product category: Other Mount Accessories Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Other Mount Accessories
|
User manual for the Chief PXR In-wall Header Footer Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief PXR In-wall Header/Footer Kit is designed to support the PAC502 in-wall solution. Featuring all required hardware for installation, the kit can be installed with ease in between three 16" (40.64cm) center studs with center stud removed. It eliminates the need to install a standard wood header and footer, and considerably reduces the installation time required for PAC502 in-wall solution. With a load bearing capacity of up to 200 lb (90.7kg), the kit offers a solid support for the PAC502 and eliminates the need to use 2x4 studs along the frame border. In addition, it eases the process of electrical wiring via knockouts. - Designed to support the PAC502 in-wall solution
- Includes all required hardware for installation
- Can be installed with ease in between three 16" (40.64cm) center studs with the center stud removed
- Eliminates the need to install a standard wood header and footer
- Reduces the installation time required for PAC502 in-wall solution
- Load bearing capacity of up to 200 lb (90.7kg)
- Offers a solid support for the PAC502
- Eliminates the need to use 2x4 studs along the frame border
- Eases the process of electrical wiring via knockouts
UPC: 841872147420 In the Box Chief PXR In-wall Header/Footer Kit 2 x Header / Footer Brackets 4 x 08 x 1-1/2" Phillips Flat Head Wood Screws 16 x M7 x 40mm Connector Screws M4 Allen Head Bit 8 x 1/4" Flat Washers 8 x 5/16-18 x 5/8" Button Head Cap 3/16" Hex Wrench 10-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief PXR In-wall Header Footer Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief PACHFK2 Specs | Weight Capacity | 200 lb (90.7 kg) | | Dimensions (HxWxD) | 20.5 x 30.5 x 3.4 (521 x 775 x 87 mm) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 32.5 x 10.3 x 10.3" |
