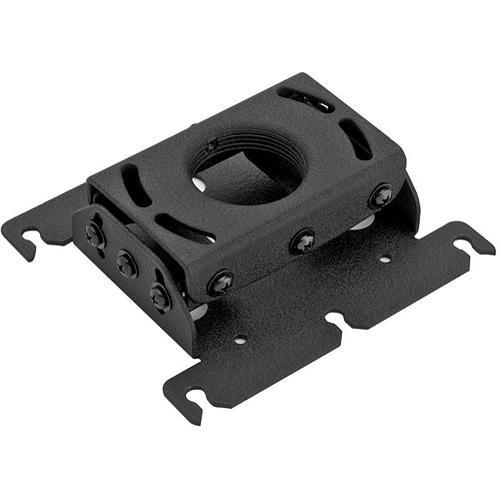

User Manual for Chief RPA-232 Inverted Custom Projector Mount Click to enlarge the picture
Contents of the user manual for the Chief RPA-232 Inverted Custom Projector Mount
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief RPA-232 Inverted Custom Projector Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The RPA-232 Inverted Custom Projector Mount from Chief allows you to mount a compatible digital projector to the ceiling. The mount supports independent yaw, roll, and pitch adjustment for precise fine-tuning of registration. Its quick connect/disconnect system allows you to change lamps and filters with ease: without the loss of registration settings.
The mount also features an All-Points Security system. Steel-into-steel locking hardware prevents thieves from making off with your valuable hardware. You have the option of mounting the projector flush to the ceiling, using 0.25" threaded rods, or a standard 1.5" NPT threaded extension column, all available separately. The integrated cable management system supports a clean installation, preventing data and power cables from being damaged.
To confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.zscedtcrbxwrysazzdwcvvussyw - Independent roll, pitch and yaw for quick and precise projector registration
- Quick connect/disconnect for convenient lamp and filter access on most projectors
- Maintains registration when disconnected and doesn't affect preset adjustments
- All-Points Security exclusive steel-into-steel locking hardware at all key connection points to protect against theft
- Multiple installation options: flush mount to ceiling, mount with 0.25" threaded rods, or mount with 1.5" NPT threaded extension column
- Cable management without additional accessories
UPC: 841872115986 In the Box Chief RPA-232 Inverted Custom Projector Mount 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief RPA-232 Inverted Custom Projector Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief RPA232 Specs | Adjustments | Roll: ±4° (Loosen screw, adjust mount, and tighten screw to hold adjustment)
Pitch: ±25° (Full range of pitch in a flush mount installation)
Yaw: 360° (12° on flush mount) | | Max Equipment Size | 50 lb (22.7kg) | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 15.0 x 10.5 x 5.5" |
