Product description

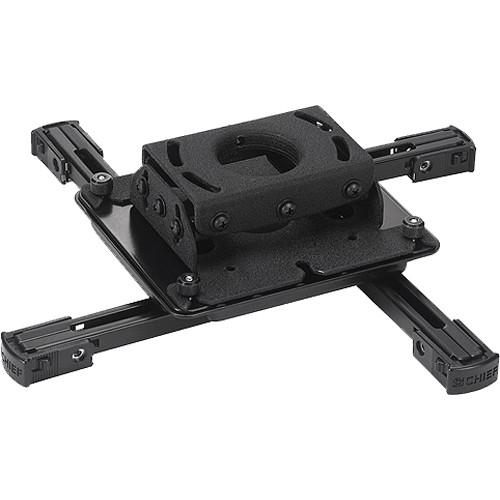

An inverted ceiling mount with the exclusive All-Points security system, the Chief RPAU is the top-selling projector mount in the industry. Ideal for use offices, schools and homes, it is supplied with everything needed for quick installation, a low-profile look and easy projector maintenance. It features a solid steel design, integrated cable management, and independent roll, pitch and yaw. It offers easy projector maintenance, quick projector connect/disconnect, and adjustable mounting legs and feet. The patented All-Points is an integrated security system that uses security hardware at all key connection points to protect projectors from theft. Steel-into-steel construction makes All-Points more effective than other integrated security systems. The RPAU includes a universal interface bracket, making it compatible with 95% of inverted projectors on the market. This makes it perfect for installers who are uncertain of a customer's projector type. However, if you want to confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.zuvqadzfwvsuea

Easy Installation

  • Independent Roll (+/-4°), Pitch (+/-25°) and Yaw (360°) adjustments make it easy to quickly and precisely register the projector.
  • Three ceiling mounting methods: Flush mount, optional 1/4" threaded rod, or with an optional 1.5" NPT Threaded Extension Column.
  • Compatible with a large assortment of accessories to easily overcome a variety of installation challenges.
  • Allows lateral shift when using the optional LSB-100 Lateral Shift Accessory. The LSB-100 allows the projector to be shifted 3" right or left of the installation spot (5.75" on projectors under 15 lb). The LSB-100 is also used to accommodate different lens placement when projectors are replaced in existing installations. Maintains quick disconnect feature and includes All-Points Security System hardware.


Security and Reliability

  • Heavy gauge solid steel design for secure mounting.
  • UL-listed for proven strength, supports projector systems up to 50 lbs.
  • Includes the All-Points Security System - exclusive locking hardware to protect against theft. Optional to use, the system locks the projector and mount with security hardware at all key connection points: Roll, Pitch and Yaw adjustments; bracket-to-projector; and mount-to-bracket.
  • Compatible with Chief's PG-1A and PG-2A Projector Guard security cages.
  • Backed by a 10-year warranty to ensure that you are receiving the best quality product.


Conveniences

  • Low-profile design allows the RPAU to be flush mounted without additional accessories.
  • Ships fully assembled with everything you need for installation in one box.
  • Custom designed brackets allow quick projector disconnect without loss of registration, doesn't affect pre-set adjustments.
  • Quick projector reconnect with convenient lamp and filter access.
  • Integrated cable management allows cables to be routed through the top of the mount without additional accessories.
  • Easy to maintain, it allows easy replacement of filter or bulb; offers proper ventilation; and lets you adjust the contour of the mount for the lowest profile possible.
UPC: 841872039619 In the Box Chief RPAU Inverted LCD/DLP Projector Ceiling Mount (Black)
  • Ceiling Bracket
  • Joint Bracket
  • Plate, Adjustment
  • Self-Tapping, Pan Head, 10-24 x 1/2" Screws with Washer (12)
  • 5/16" Screw Set
  • 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Chief RPAU Inverted LCD DLP Projector Ceiling Mount in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Chief RPAU Specs

    Depth From Mounting Source Not Specified by Manufacturer; The RPAU adds approximately 2.5" (64mm) to the installation
    Max Equipment Size 50 lbs (22.7kg)
    Adjustments
  • Roll Adjustment: +/- 4° adjustment up or down
  • Loosen screw, adjust mount and tighten screw to hold adjustment
  • Pitch Adjustment: +/- 25° adjustment on each side of the mount. Loosen screw, adjust mount and tighten screw to hold adjustment. Full range of pitch in a flush mount installation.
  • Yaw Adjustment: 360° by turning the mount on the threaded column and securing in place with set screw. 12° yaw possible on flush mount using slots in top of RPAU.
  • Construction Steel, Black
    Dimensions 6.25 x 1.75 x 5.5" (159 x 44 x 140mm) Height does not include interface bracket
    Weight Capacity 50 lbs (22.7kg) Each mount is designed to support the weight of the projector model(s) specified; However, your ceiling must hold at least five times the weight of your installation
    Weight Not Specified by Manufacturer
    Package Weight 5.62 lb
    Box Dimensions (LxWxH) 10.4 x 10.35 x 4.55"

    Rating

    94% users recommend this product to others. And what about you?
    Rating: 4.7 of 5

    This product has already been rated by 89 owners. Add your rating and experience with the product.
