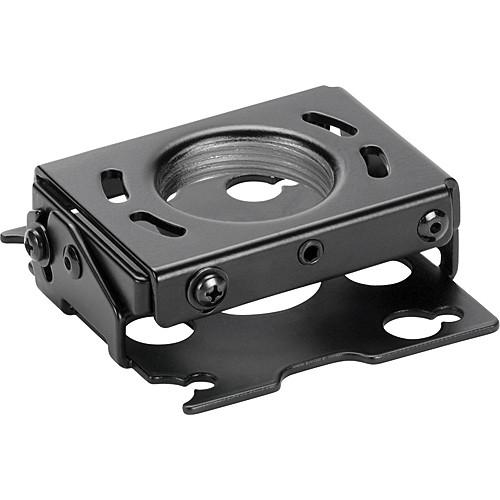

User Manual for Chief RSA159 Mini RSA Projector Mount Click to enlarge the picture
Contents of the user manual for the Chief RSA159 Mini RSA Projector Mount
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief RSA159 Mini RSA Projector Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief RSA159 Mini RSA Projector Mount builds on the foundation of the highly successful RPA mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package.
Although 33% smaller than the RPA, these mini mounts maintain 100% of the functionality of the larger mount, with independent yaw, pitch and roll movements and a 25 lb capacity. Shipped fully assembled, the RSA159 is also quick to connect or disconnect for lamp or filter changes with precise enough remounting to ensure that registration and preset adjustments remain unaffected.
The RSA159 offers flexible installation options including ceiling flush mounting, 6.35 mm threaded rods or 1.5" NPT threaded extension columns. All Points Security ensures that you projector doesn't take any unauthorized trips, providing "steel-onto-steel" locking hardware at all points of connection.
To confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro. - Smaller Form Factor
- Compact design is smaller than the RPA by 1/3 and includes the same great features
- Independent Movements
- Independent roll, pitch and yaw for quick and precise projector registration
- Quick Connect-Disconnect
- Convenient lamp and filter access on most projectors. Disconnecting maintains registration and doesn't affect pre-set adjustments.
- Security
- All-Points Security steel-into-steel locking hardware at all connection points protects against theft
- Multiple Installation Options
- Mounting options include: flush mount to ceiling, use 0.25" (6.35 mm) threaded rods or use a 1-1/2" NPT threaded extension column. New universal interface with faster installation and lamp and filter access.
- Complete Assembled Kit
- Ships fully assembled with everything you need for installation in one box.
In the Box Chief RSA159 Mini RSA Projector Mount Interface Bracket All Points Security Kit Nuts, Screws and Hardware 10 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief RSA159 Mini RSA Projector Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief RSA159 Specs | Compatibility | To confirm the compatibility of this mount with your projector, visit Chief's | | Adjustments | Roll: +/-3°
Pitch: +/-20°
Yaw: 360° | | Construction | Steel | | Dimensions (HxWxD) | 1.44 x 4.38 x 4.39" (3.7 x 11.1 x 11.2 cm) | | Weight Capacity | 25 lbs (11.3 kg) | | Color | Black | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 13.25 x 9.5 x 3.7" |
