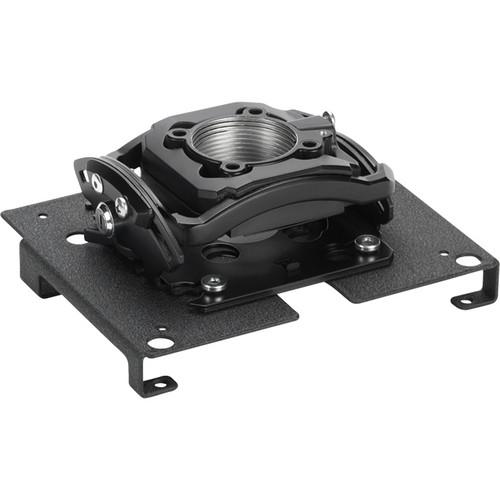

User Manual for Chief RSMA278 Mini Elite Custom Projector Mount Click to enlarge the picture
Contents of the user manual for the Chief RSMA278 Mini Elite Custom Projector
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief RSMA278 Mini Elite Custom Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief RSMA278 Mini Elite Custom Projector Mount (Lock C) provides a compact mounting solution for smaller projectors weighing up to 25 lb (11.3 kg). Included in the pack is a SSM-278 Interface Bracket and all the necessary hardware that ensures quick and easy installation.
Centris technology allows for fingertip tilting and rotation of the display, and automatically adjusts the mount to support different projector weights. MicroZone adjustments can be used for quick and precise projector registration. Once adjusted, the Elite Mount maintains the registration and the preset adjustments remain unaltered even if the mount is disconnected.
For maintenance purposes, you can use the Q-lock quick release lever to quickly connect or disconnect the projector from the mount. In addition, an integrated key and lock system makes the mount tamper-resistant. - Small Form Factor
-
- Smaller than the RPA Elite by 1/3
- For small projectors weighing up to 25 lbs (11.3 kg)
- Access the projector lamp and filter for quicker installation
- Interface Bracket
-
- Comes with all the necessary hardware for easily mounting a projector
- Micro-Adjustable
-
- Makes projector registration fast and precise (including flush mount installations)
- Precise Viewing
-
- Independent ±3° roll, ±15° pitch, and 360° yaw allow you to accurately register the projector
- Fingertip Positioning
-
- Centris technology allows fingertip tilting and rotation
- Mount self-adjusts to support different projector weights
- Quick Release
-
- Q-Lock Quick Release Lever for quickly connecting or disconnecting the projector for maintenance
- Security
-
- Key and lock system for enhanced security
- Cable Management
-
- Cables routed through top of mount without additional accessories
- Prevents tangling and damage to the cords and also helps in reducing clutter, giving a professional look
UPC: 841872149523 In the Box Chief RSMA278 Mini Elite Custom Projector Mount (Lock C) SSM-278 Interface Bracket 6 x 10-24 Thumb Nuts All-Points Security Kit 5 x Spacer, .500 x .316 x .500 5 x Screw, Phillips Flat Head, Machine, M4 x 25mm 5/32" Security Hex Key 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief RSMA278 Mini Elite Custom Projector Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief RSMC278 Specs | Roll | ±3˚ | | Pitch | ±15˚ | | Yaw | 360˚ | | Weight Capacity | 25 lb (11.3 kg) | | Color | Custom: Black
Universal: Black, silver, white | | Dimensions (H x W x D) | 1.83 x 4.37 x 5.07" (46 x 111 x 129 mm) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 13.0 x 13.0 x 4.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
