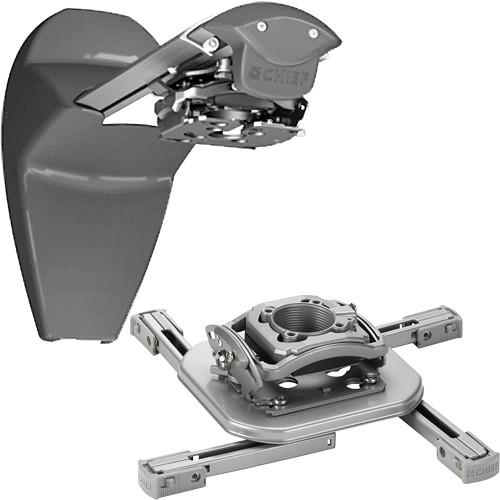

User Manual for Chief Short Throw Projector Arm Mini Elite Mount Kit Click to enlarge the picture
Contents of the user manual for the Chief Short Throw Projector Arm Mini
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief Short Throw Projector Arm Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief WM110AUS Short Throw Projector Arm/ Mini Elite Mount Kit is an ideal way to maximize the close-up capabilities of your short throw projector while saving room space and locating the projector above the audience.
The arm mounts securely to a single stud via the included wall plate and included hardware, supporting weights up to 50 lbs. The 1.5' adjustment range allows you to locate the projector and included mount from 11.5-18" from the wall with +/-3° pitch adjustment. Compatibility includes RPA standard, RPA Elite, RPA Mini and RPA Mini Elite mounts.
The included RSMAUS Mini RPA Elite Projector Mount builds on the foundation of the highly successful RPA Elite mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.
Although 33% smaller than the RPA, these mini mounts maintain 100% of the functionality of the larger mount, with independent MicroZone adjustments and a 25 lb capacity. Centris Technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights. Shipped fully assembled, the RSMAUS is also quick to connect or disconnect for lamp or filter changes via the Q-Lock Release Lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates an "A" series key and lock. Arm - Fast installation with innovative quick-connect system
- Industry-first micro height and leveling adjustment
- 1.5' (45.7 cm) Telescoping extension range
- Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
- Integrated cable management system conceals and protects cables for a clean finish
- Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
- Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
- Includes short-throw arm only, projector mount must be ordered separately
Mount - Compact design is smaller than the RPA Elite by 1/3 and includes all the same features
- MicroZone Adjustments make projector registration fast and precise (including flush mount installations)
- Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
- Integrated cable management through top of mount without additional accessories
- Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system (4 key options)
UPC: 841872122960 In the Box Chief Short Throw Projector Arm/ Mini Elite Mount Kit (Silver) Wall Bracket Mounting Hardware Installation Guide 10 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Short Throw Projector Arm Mini Elite Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief WM110AUS Specs | Construction | Steel | | Finish | Silver | | Adjustments | Roll: +/-20°
Pitch: +/-3°
Yaw: 360°
Full extension: 1.5' (45.7 cm)
Projector distance from wall: 11.25-18" (28.5-45.7 cm) | | Dimensions (HxWxD) | Extended Arm: 21.71 x 5.41 x 6.38" (55.1 x 13.7 x 16.2 cm)
Wall plate: 14.17 x 7.27 x 3.7" (36 x 18.4 x 9.4 cm) | | Load Capacity | 50 lbs (22.7 kg) | | | | Adjustments | Roll: +/-3°
Pitch: +/-15°
Yaw: 360° | | Construction | Steel | | Dimensions | 1.83 x 4.37 x 5.07" (4.6 x 11.1 x 12.9 cm) | | Weight Capacity | 25 lbs (11.3 kg) | | Color | Silver | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 22.1 x 12.7 x 12.2" |
