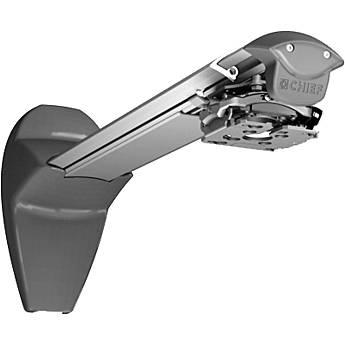

Product description The Chief WM120S Short Throw Projector Single Stud Wall Arm is an ideal way to maximize the close-up capabilities of your short throw projector while saving room space and locating the projector above the audience.
The arm mounts securely to a single stud via the included wall plate and included hardware, supporting weights up to 25 lbs. The 12.5" adjustment range allows you to locate the projector on an optional mount from 16-28.5" from the wall with +/-3° pitch adjustment. Compatibility includes RPA standard, RPA Elite, RPA Mini and RPA Mini Elite mounts. - Fast installation with innovative quick-connect system
- Industry-first micro height and leveling adjustment
- Telescoping extension to 28.5"
- Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
- Integrated cable management system conceals and protects cables for a clean finish
- Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
- Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
- Includes short throw arm only, projector mount must be ordered separately
UPC: 841872122854 In the Box Chief Short Throw Projector Single Stud Wall Arm Wall Bracket Mounting Hardware Installation Guide 10 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Short Throw Projector Single Stud Wall Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief WM120S Specs | Construction | Steel | | Finish | Silver | | Adjustments | Roll: +/-20°
Pitch: +/-3°
Yaw: 360°
Full extension: 1.5' (45.7 cm)
Actual projector distance from wall: 16-28.5" (40.6-72.4 cm) | | Dimensions (HxWxD) | Extended Arm: 34.21 x 5.41 x 6.38" (86.9 x 13.7 x 16.2 cm)
Wall plate: 14.17 x 7.27 x 3.7" (36 x 18.4 x 9.4 cm) | | Load Capacity | 25 lbs (11.3 kg) | | | | Package Weight | 19.15 lb | | Box Dimensions (LxWxH) | 24.0 x 12.0 x 12.0" |
