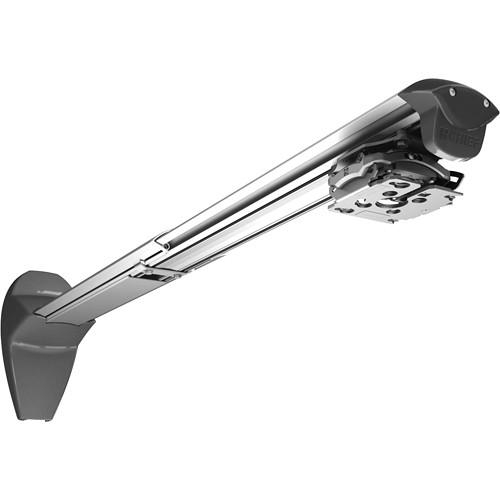

User Manual for Chief Short Throw Projector Single Stud Wall Arm Click to enlarge the picture
Contents of the user manual for the Chief Short Throw Projector Single Stud
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief Short Throw Projector Single Stud contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief WM130S Short Throw Projector Single Stud Wall Arm is an ideal way to maximize the close-up capabilities of your short throw projector while saving room space and locating the projector above the audience.
The arm mounts securely to a single stud via the included wall plate and included hardware, supporting weights up to 25 lbs. The 24.5 adjustment range allows you to locate the projector on an optional mount from 28-52.5" from the wall with +/-3° pitch adjustment. Compatibility includes RPA standard, RPA Elite, RPA Mini and RPA Mini Elite mounts. - Fast installation with innovative quick-connect system
- Industry-first micro height and leveling adjustment
- 24.5" Telescoping extension range
- Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
- Integrated cable management system conceals and protects cables for a clean finish
- Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
- Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
- Includes short throw arm only, projector mount must be ordered separately
UPC: 841872122885 In the Box Chief Short Throw Projector Single Stud Wall Arm (Silver) Wall Bracket Mounting Hardware Installation Guide 10 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Short Throw Projector Single Stud Wall Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief WM130S Specs | Construction | Steel | | Finish | Silver | | Adjustments | Roll: +/-20°
Pitch: +/-3°
Yaw: 360°
Full extension: 58.2" (148 cm)
Projector distance from wall: 28-52.5" (71.1-133.3 cm) | | Dimensions (HxWxD) | Extended Arm: 58.2 x 5.41 x 6.38" (148 x 13.7 x 16.2 cm)
Wall plate: 14.17 x 7.27 x 3.7" (36 x 18.4 x 9.4 cm) | | Load Capacity | 25 lbs (11.3 kg) | | | | Package Weight | 24.4 lb | | Box Dimensions (LxWxH) | 36.0 x 12.0 x 12.0" |
