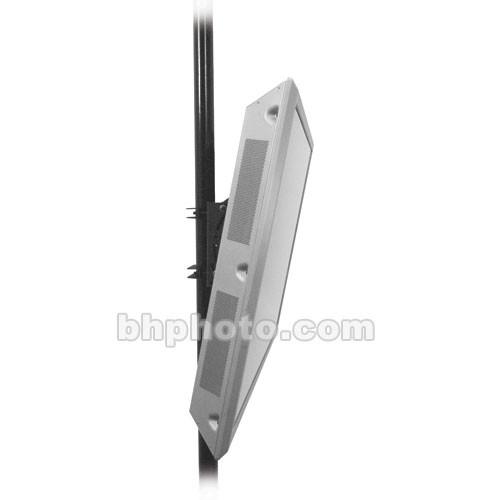

User Manual for Chief TPM-2102 Flat Panel Tilting Pole Mount Click to enlarge the picture
Contents of the user manual for the Chief TPM-2102 Flat Panel Tilting Pole
- Product category: Monitor Pole & Truss Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Pole & Truss Mounts
|
User manual for the Chief TPM-2102 Flat Panel Tilting Pole contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description Designed for flat panel TV/monitors from 30-61" or up to 150 lbs, the versatile Chief TPM-2102 accommodates a large range of pole dimensions, includes security options, and provides flexible features to achieve a custom installation. Perfect for exhibit, retail and digital signage applications, it also includes Chief's Q-Latch mounting system to secure the display with a lockable latch. To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. Note: Requires additional (TPK) pole kits for different size poles to complete installation Easy Installation - Attach displays in portrait or landscape orientation.
- Install in portrait position and use tilt adjustment for side-to-side pivot.
- Ultra low-profile, the mount sits snugly against poles for an integrated look.
- Accommodates a wide range of pole dimensions (up to 6" OD) to make a custom installation.
- Durably constructed with heavy-duty steel and lock-down tilt.
- Q-Latch Mounting System offers quick connect/disconnect (no tools needed) and secures the display with a latching flag. Integrated security allows the display to be locked to the mount by adding a padlock.
Viewer Friendly
- Offers three tilt adjustment options:
- Exclusive Centris Select tilt mechanism (+/-15°) lets you select the perfect tension for your screen's center of gravity to achieve smooth fingertip tilt. Screen angle stays set until you decide to re-adjust.
- Lockable tilt
- Pre-set tilt locking points at 0, 5, 10, and 15° to quickly and easily align multiple displays - Backed by a 10-year warranty to ensure that you are receiving the best quality product.
In the Box Chief TPM-2102 Flat Panel Tilting Pole Mount TPM-2102 Tilt-Adjustable Pole Mount Interface Bracket Hex Key 5/32" Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief TPM-2102 Flat Panel Tilting Pole Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief TPM2102 Specs | Number of Displays | 1 | | Mounting-Hole Pattern | Custom | | Bracket Load Capacity | 150 lb / 68.0 kg | | Tilt Adjustment | -15 to 15° | | Maximum Extension | None | | Depth from Mounting Source | 3.4" / 86.3 mm | | Material | Steel | | Dimensions (W x H x D) | 16.2 x 16.7 x 3.4" / 411.4 x 424.1 x 86.3 mm | | | | Package Weight | 21.35 lb | | Box Dimensions (LxWxH) | 39.5 x 20.0 x 5.25" |
