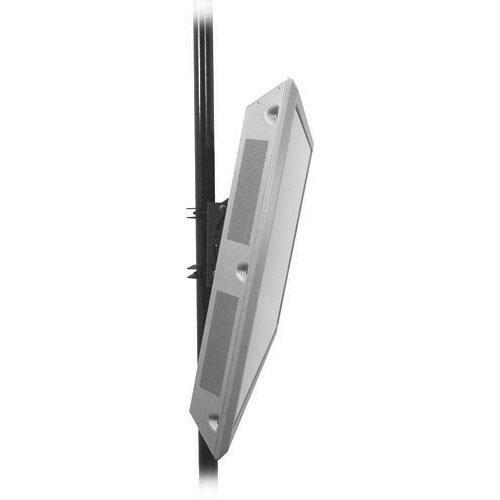

User Manual for Chief TPM2264 Flat Panel Tilt Pole Mount Click to enlarge the picture
Contents of the user manual for the Chief TPM2264 Flat Panel Tilt Pole
- Product category: Monitor Pole & Truss Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Pole & Truss Mounts
|
User manual for the Chief TPM2264 Flat Panel Tilt Pole contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief TPM2264 Flat Panel Tilt Pole Mount is a clean, attractive way to quickly mount flat panel TVs up to 63" to poles of various diameters. Installation requires separate purchase of either TPK1 clamp for 1-2" OD poles and trusses or TPK2 clamp for 2-3" poles and trusses. These pole mounts are very useful in display, convention or retail applications and especially valuable in multi-panel installations where features like Three Axis Tilt Adjustment as well as the ability mount the display in landscape or portrait orientation make it easy to align each panel with the others. Each model of pole mount ships with a custom interface which fits screw configurations across a wide range of brands and models within those brands. Please check compatibility with your specific TV at the manufacturer's website. - Three Mount Options: Truss/Pole Static Mount, Pole Pitch-Adjustable Mount, and Truss Pitch-Adjustable Mount.
- Three Tilt Adjustment Options on TPM and TPP: +/- 15° tilt on gravity centered axis point, lockable tilt, pre-set tilt locking points at 0°, 5°, 10° and 15° to quickly and easily align multiple displays.
- Install mount horizontally and use pitch adjustment for side-to-side pivot.
- Install on vertical or horizontal truss.
- Attach displays in portrait or landscape orientation.
- TPS/TPP span most truss systems up to 14" (OD).
- Truss/Pole clamps fit a wide variety of truss and pole dimensions.
- Finishing Cover accessories enhance aesthetics and cover hardware for added security.
- Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch.
- Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen).
- Integrated security allows display to be locked to mount by adding a padlock.
In the Box Chief TPM2264 Flat Panel Tilt Pole Mount TPM-2000 Flat Panel Tilting Pole Mount PSB-2246S LCD Display Mounting Bracket (Silver) Hex Key Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief TPM2264 Flat Panel Tilt Pole Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief TPM2264 Specs | Number of Displays | 1 | | Mounting-Hole Pattern | Custom | | Maximum Screen Size | 63" / 160 cm | | Bracket Load Capacity | 150 lb / 68.0 kg | | Tilt Adjustment | -15 to 15° | | Maximum Extension | None | | Dimensions (W x H x D) | 16.8 x 16.7 x 3.4" / 426.7 x 424.1 x 86.3 mm |
