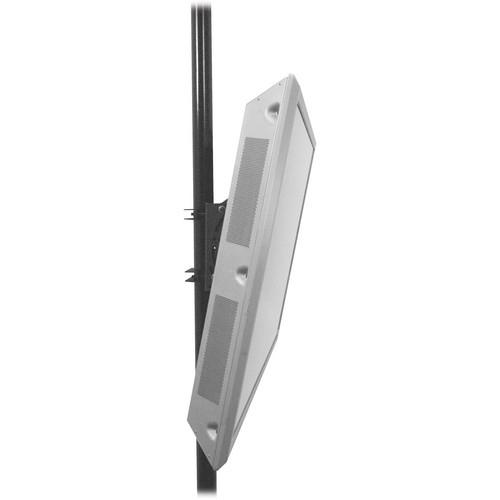

User Manual for Chief TPM2430 Flat Panel Tilt Pole Mount Click to enlarge the picture
Contents of the user manual for the Chief TPM2430 Flat Panel Tilt Pole
- Product category: Monitor Pole & Truss Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Pole & Truss Mounts
|
User manual for the Chief TPM2430 Flat Panel Tilt Pole contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief TPM2430 Flat Panel Tilt Pole Mount is designed for use with a display up to 63" weighing under 150 pounds. Quick, easy and versatile, it's ideal for mounting flat panel displays used in exhibit, retail and digital signage. Optimize viewing with the many adjustment options. The three tilt options are +/- 15 º tilt on the gravity centered axis point, lockable tilt, and pre-set tilt locking points at 0º, 5º, 10º and 15 º to quickly and easily align multiple displays. For additional security, you can even attach a padlock to fully protect the safety of your flat screen. Note: Clamps for different size poles and truss work are required and must be ordered separately. - Three tilt adjustment options: +/- 15 º tilt on gravity centered axis point, lockable tilt, pre-set tilt locking points at 0º, 5º, 10º and 15 º to quickly and easily align multiple displays
- Install mount horizontally and use pitch adjustment for side-to-side pivot
- Install on vertical or horizontal truss
- Truss/pole clamps fit a wide variety of truss and pole dimensions
- Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
- Finishing cover accessories enhance aesthetics and cover hardware for added security
- Integrated security allows display to be locked to mount by adding a padlock
In the Box Chief TPM2430 Flat Panel Tilt Pole Mount (Displays up to 63") Mount Hex Key Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief TPM2430 Flat Panel Tilt Pole Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief TPM2430 Specs | Number of Displays | 1 | | Mounting-Hole Pattern | Custom | | Maximum Screen Size | 63" / 160 cm | | Bracket Load Capacity | 150 lb / 68.0 kg | | Tilt Adjustment | -15 to 15° | | Maximum Extension | None | | Dimensions (W x H x D) | 16.8 x 16.7 x 3.4" / 426.7 x 424.1 x 86.3 mm | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 39.5 x 20.0 x 5.25" |
