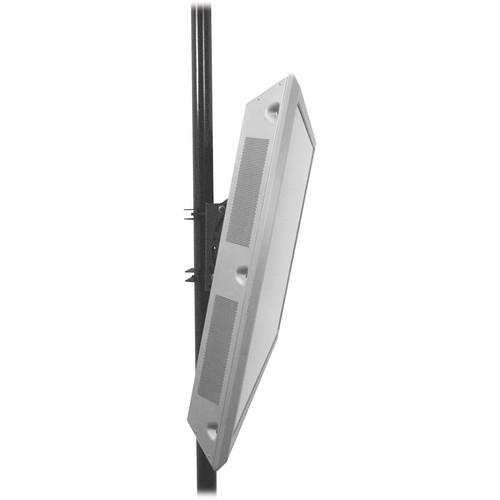

Product description The Chief TPM2644 Large Tilt Pole Mount allows you to pole mount large flat panel displays that are used in exhibits, retail, and digital signage applications. Compatible with 42 to 71" (107 cm to 180 cm) flat panel displays, the pole mount can handle loads up to 150 lb (68 kg).
With support for ±15 º tilt on gravity centered axis point, lockable tilt, pre-set tilt locking points at 0º/5º/10º/15 º, the pole mount enables easy and quick alignment of multiple displays. The Tilt Pole Mount supports mounting options such as Truss/Pole static mount, Pole Pitch-adjustable mount, and Truss Pitch-adjustable mount.
You can install the mount horizontally and make use of pitch adjustment for side-to-side pivot. In addition, the pole mount can be installed on vertical or horizontal truss. The Tilt Pole Mount uses the Q-Latch mounting system to secure the flat panel display to the mount with a lockable latch. In addition, the mount can be used to mount the flat panels in portrait or landscape orientation.
Using the optional PAC400/MAC400 accessory, the Tilt Pole Mount can be rotated without removing the screen. With the help of optional padlock, you can secure the display to the mount. In addition, the pole mount is compatible with a wide range of TPK clamp accessories. - Allows you to pole mount large flat panel displays that are used in exhibits, retail, and digital signage applications
- Compatible with 42 to 71" (107 cm to 180 cm) flat panel displays
- Can handle loads up to 150 lb (68kg)
- Supports ±15 º tilt on gravity centered axis point, lockable tilt, and pre-set tilt locking points at 0º/5º/10º/15º
- Enables easy and quick alignment of multiple displays
- Supports mounting options such as Truss/Pole static mount, Pole Pitch-adjustable mount, and Truss Pitch-adjustable mountc
- You can install the mount horizontally and make use of pitch adjustment for side-to-side pivot
- Can be installed on vertical or horizontal truss
- Uses the Q-Latch mounting system to secure the flat panel display to the mount with a lockable latch
- Can be used to mount the flat panels in portrait or landscape orientation
- Can be rotated without removing the screen using the optional PAC400/MAC400 accessory
- You can secure the display to the mount with the help of optional padlock
- Compatible with a wide range of TPK clamp accessories
- TPS (Truss/Pole static mount)/TPM (Pole Pitch-adjustable mount) supports truss systems up to 14" (OD)
- Truss/Pole clamps accommodates a large range of truss and pole dimensions
- Features finishing cover accessories for attractive look and feel
- Features cover hardware that provides added security
In the Box Chief TPM2644 Large Tilt Pole Mount Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief TPM2644 Large Tilt Pole Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief TPM2644 Specs | Number of Displays | 1 | | Mounting-Hole Pattern | 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 600 x 200 mm, 600 x 400 mm, 800 x 400 mm | | Maximum Screen Size | 71" / 180.3 cm | | Minimum Screen Size | 42" / 106.7 cm | | Bracket Load Capacity | 150 lb / 68.0 kg | | Maximum Extension | None | | Depth from Mounting Source | 3.4" / 86.4 mm | | Dimensions (W x H x D) | 16.2 x 17.1 x 3.4" / 411.4 x 434.3 x 86.3 mm | | | | Package Weight | 23.8 lb | | Box Dimensions (LxWxH) | 39.5 x 20.0 x 5.25" |
