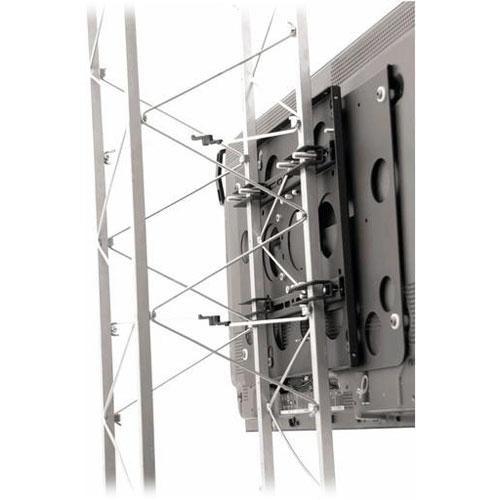

User Manual for Chief TPS-2060 Flat Panel Fixed Truss & Pole Mount Click to enlarge the picture
Contents of the user manual for the Chief TPS-2060 Flat Panel Fixed Truss
- Product category: Monitor Pole & Truss Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Pole & Truss Mounts
|
User manual for the Chief TPS-2060 Flat Panel Fixed Truss contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description Designed for flat panel TV/monitors from 30-61" or up to 150 lbs, the versatile Chief TPS-2060 accommodates a large range of truss and pole dimensions, includes security options, and provides flexible features to achieve a custom installation for multiple applications. Perfect for exhibit, retail and digital signage applications, it also includes Chief's Q-Latch mounting system to secure the display with a lockable latch. To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. Note: Requires additional Pole or Truss kits for different size poles and truss work to complete installation. Choose from TPK-1 and TPK-2 Pole Kits, or TPK-3, TPK-4 or TPK-Truss Kits. - Easy to install, the mount fits vertical or horizontal truss systems up to 14" OD.
- Display installs in portrait or landscape positions.
- Ultra low-profile, the mount sits snugly against truss or poles for an integrated look.
- Durably constructed with heavy-duty steel, accommodates a wide range of truss and pole dimensions to make a custom installation.
- Q-Latch Mounting System offers quick connect/disconnect (no tools needed) and secures the display with a latching flag. Integrated security allows the display to be locked to the mount by adding a padlock.
- Backed by a 10-year warranty to ensure that you are receiving the best quality product.
In the Box Chief TPS-2060 Flat Panel Fixed Truss & Pole Mount TPS-2060 Interface Bracket Plate, Truss 2 x Nut, Lock, Stover, 3/8" 2 x Washer, Flat, 3/8" 3 x Washer, UHMW 2 x Spacer, Nylon Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief TPS-2060 Flat Panel Fixed Truss & Pole Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief TPS2060 Specs | Number of Displays | 1 | | Mounting-Hole Pattern | Custom | | Maximum Screen Size | 63" / 160 cm | | Bracket Load Capacity | 150 lb / 68.0 kg | | Maximum Extension | None | | Depth from Mounting Source | 0.8" / 20.5 mm | | Material | Steel | | Dimensions (W x H x D) | 6.2 x 16.6 x 0.8" / 157.4 x 421.6 x 20.3 mm | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 39.5 x 20.0 x 5.25" |
