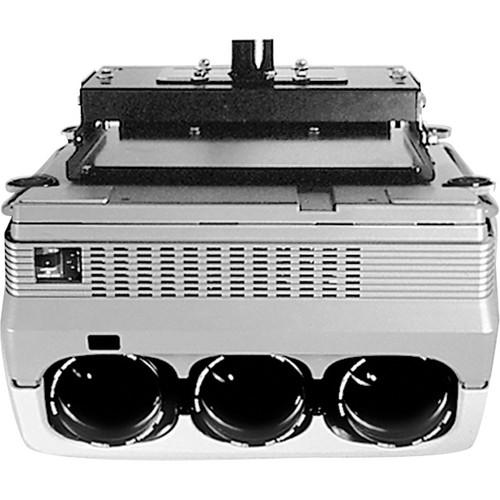

User Manual for Chief VCM-71P Heavy Duty LCD CRT Projector Ceiling Mount Click to enlarge the picture
Contents of the user manual for the Chief VCM-71P Heavy Duty LCD CRT
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief VCM-71P Heavy Duty LCD CRT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The VCM-71P Heavy Duty LCD/CRT Projector Ceiling Mount from Chief allows you to mount a hefty projector, up to 250 pounds, to a ceiling. You'll be able to adjust roll, yaw, and pitch with extreme precision, necessary to achieve accurate registration. The quick disconnect system allows you to remove the projector and replace it on the mount without losing registration.
To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. - Independent roll, pitch and yaw adjustments for quick and precise projector registration
- Multiple installation options: flush mount to ceiling, use 0.5" threaded rods, use a 1.5" NPT extension column
- Quick connect/disconnect for convenient lamp and filter access on most projectors
- Cable management through top of the mount without additional accessories
UPC: 841872106243 In the Box Chief VCM-71P Heavy Duty LCD/CRT Projector Ceiling Mount 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief VCM-71P Heavy Duty LCD CRT Projector Ceiling Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief VCM71P Specs | | | Depth From Mounting Source | Not Specified by Manufacturer | | Max Equipment Size | Not Specified by Manufacturer | | Adjustments | Roll: ±5°
Pitch: ±20°
Yaw: 360°
Horizontal: 1.5" in any direction | | | | Construction | Steel | | Dimensions | 14.6 x 3.8 x 12.3" (37.1 x 9.7 x 31.2cm) | | Weight Capacity | 250 lb (113.4kg) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 23.75 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 10.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
