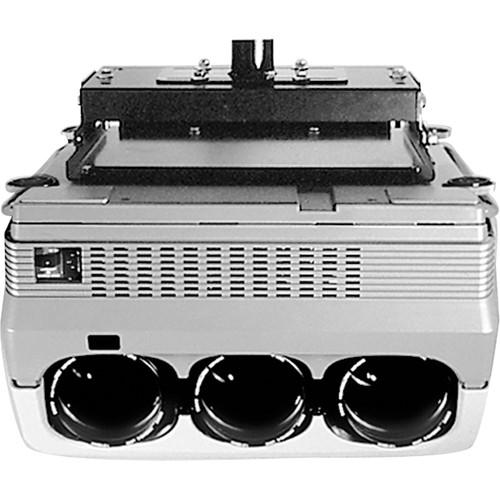

User Manual for Chief VCM43E Heavy Duty LCD CRT Projector Ceiling Mount Click to enlarge the picture
Contents of the user manual for the Chief VCM43E Heavy Duty LCD CRT
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief VCM43E Heavy Duty LCD CRT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The VCM43E Heavy Duty LCD/CRT Projector Ceiling Mount provides the strong support you need for mounting heavy LCD/CRT projectors. Chief's exclusive micrometer adjustments and quick disconnect save installation and maintenance time. Micrometer adjustments give you the precision you need to quickly achieve registration. The quick disconnect feature allows you to remove the projector for maintenance and replace it on the mount without losing registration. The exclusive roll (5°) and pitch (20°) adjustments of the VCM Ceiling Mount are made with the alignment features of the body. Simply turn the roll adjustment bolt to raise or lower either side of the projector, then adjust and lock the pitch adjustment. This process enables you to remove the projector for service and remount without disturbing the original projector alignment. To confirm the compatibility of this mount with your LCD/CRT projector, visit Chief's MountFinder Pro. - Cable management through top of the mount without additional accessories
- Quick connect/disconnect for convenient lamp and filter access on most projectors
- Independent roll, pitch and yaw adjustments for quick and precise projector registration
- Multiple installation options: flush mount to ceiling, use 0.5" (12.7mm) threaded rods, use a 1.5" (38.1mm) NPT extension column
UPC: 841872027241 In the Box Chief VCM43E Heavy Duty LCD/CRT Projector Ceiling Mount Custom Hardware Kit User Manual 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief VCM43E Heavy Duty LCD CRT Projector Ceiling Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief VCM43E Specs | Roll | +/-5° | | Pitch | +/-20° (depending on projector) | | Yaw | 360° | | Adjustments | 1.5" (38.1mm) (in any direction) | | Color | Black | | Dimensions | 14.6 x 3.8 x 12.3" (371 x 97 x 312mm) Dimensions do not include interface bracket | | Weight Capacity | 250 lbs (113.4kg) | | | | Package Weight | 24.1 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 10.0" |
