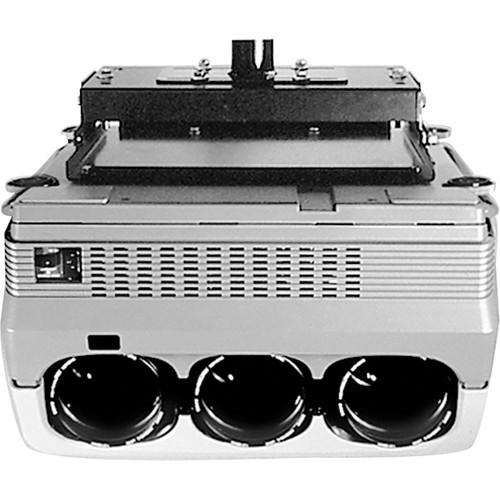

User Manual for Chief VCM75P Heavy-duty Custom Projector Mount Click to enlarge the picture
Contents of the user manual for the Chief VCM75P Heavy-duty Custom Projector Mount
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief VCM75P Heavy-duty Custom Projector Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief VCM75P Heavy-duty Custom Projector Mount allows you to mount a hefty projector, weighing up to 250 lb (113.4 kg), to a ceiling. Precise projector registration can be achieved, thanks to this mount’s independent roll, pitch, and yaw micro-adjustments. A quick connect/disconnect feature on this mount lets you disconnect the projector for lamp replacement or cleaning of the filter without any hassle. Moreover, the projector’s registration and the pre-set adjustments are maintained after reattachment. The mount maintains a clutter-free look via cable management, which neatly tucks in loose wires without the need of any additional accessories. - For mounting heavy LCD/CRT projectors weighing up to 250 lb (113.4 kg)
- Can be mounted in 3 different mounting methods such as flush mount to ceiling, using 0.5" threaded rods, or a 1.5" NPT extension column
- Independent roll, pitch, and yaw adjustments allow micro-adjustments for accurate registration
- Quick connect/disconnect feature for easy lamp and filter access
- Registration and pre-set adjustments are maintained after reconnection
- Cable management through top maintains a professional look
- Compatible with a wide array of accessories
UPC: 841872148205 In the Box Chief VCM75P Heavy-duty Custom Projector Mount Mounting Hardware 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief VCM75P Heavy-duty Custom Projector Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief VCM75P Specs | Roll | ±5° | | Pitch | ±20° | | Yaw | 360° | | Color | Black | | Load Capacity | 250 lb (113.4 kg) | | Dimensions (HxWxD) | 3.8 x 14.6 x 12.3" (97 x 371 x 312 mm) Dimensions don't include interface bracket. | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 24.5 x 18.0 x 10.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
