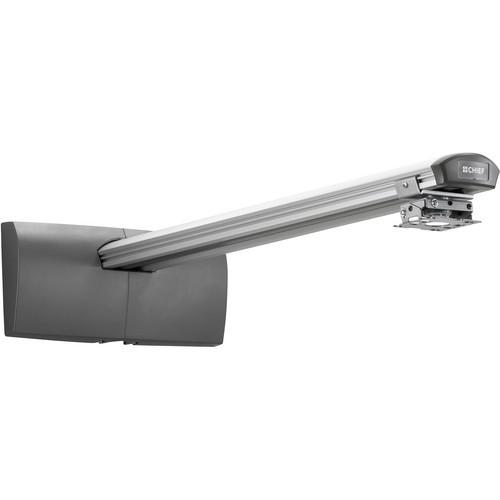

Product description The Chief WP22US Ultra Short Throw & Universal Projector Mount Kit (40") offers an ideal solution for mounting smaller projectors weighing up to 25 lb (11.3 kg) on to a variety of surfaces like concrete, block wall, brick, dual wood, or dual steel studs. It includes an RSAUS Mini Universal RPA Projector Mount and an Ultra Short Throw Projector Wall Mount (40") Extension.
The Ultra Short Throw Projector Wall Mount 40" Extension has a precision adjustment system, which can be used for manually altering the projector’s position horizontally and vertically. It features a manual lateral shift of 1.75" (44.45mm) to alter the position of the mount laterally without detaching the wall plate and integrated micro leveling for minutely adjusting the horizontal level of the arm. Aesthetically designed, the inlay cable management system both protects and conceals the cables ensuring a clean finish.
The RSAUS Mini Universal RPA Projector Mount features a universal interface and a compact design which is 33% smaller than the RPA mount. Though smaller in size, it retains much of the functionality of the larger mount, such as independent roll, pitch, and yaw adjustments for quick and precise projector registration. For a quick lamp or filter change, it is easy to connect or disconnect the mount, which retains the registration and preset adjustments even after disconnection. The RSAUS offers flexible installation options, including ceiling flush mounting and mounting to 0.25" (6.35mm) threaded rods or 1.5" NPT threaded extension columns. - WP22S Ultra Short Throw Projector Wall Mount 40" Extension The Chief WP22S Ultra Short Throw Projector Wall Mount 40" Extension offers an ideal solution for mounting your projector on to a variety of surfaces like concrete, block wall, brick, dual wood, or dual steel studs. The projector has a precision adjustment system, which can be used for manually altering the projector position horizontally and vertically. A lateral shift of 1.75" (44.45mm) allows you to alter the position of the mount laterally without detaching the wall plate. In addition, the integrated micro leveling lets you minutely adjust the horizontal level of the arm.
The 1.5" NPS collar provides compatibility with the RPA, Elite, RPA Mini, and Elite Mini Series projector mounts (to be purchased separately). It can also support wall-mounted long-throw projectors.
Aesthetically designed, the Inlay Cable Management system both protects and conceals the cables ensuring a clean finish. - Precision Adjustment
-
- Projector mount slides along arm for infinite projector placement
- Integrated micro leveling to make minute adjustments to the height of the arm
- Lateral shift of 1.75" (44mm) for altering the position of the mount even after installation
- Integrated Cable Management
-
- Inlay style cable management system conceals and protects cables for a clean finish
- Multiple Installation Options
-
- Designed for mounting to concrete, block wall, brick, dual wood or dual steel studs
- Hardware for mounting to wood stud and concrete wall included
- Compatibility
-
- 1.5" (38.1mm) NPS collar provides compatibility with RPA & Elite Series projector mounts and other accessories
- Supports wall-mounted long-throw projectors
- Customized Installation
-
- Removable logo card on the end cap of the mount can be replaced with personalized information
UPC: 841872153926 - RSMD000 Mini RPA Projector Mount (Silver) The Chief RSAUS Mini RPA Projector Mount builds on the foundation of the highly successful RPA mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package.Although 33% smaller than the RPA, this mini mount retains much of the functionality of the larger mount, with independent roll, pitch and yaw adjustments for quick and precise projector registration and a 25 lb capacity. Shipped fully assembled, the RSAUS is also quick to connect or disconnect for lamp or filter changes while maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected. The RSAUS offers flexible installation options including ceiling flush mounting, 6.35 mm threaded rods or 1.5" NPT threaded extension columns. The included universal fits most projectors.To confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.wvbszttrdqsuus
- Smaller Form Factor
- Compact design is smaller than the RPA Elite by 1/3 and includes all the same features.
- Independent Adjustments
- Independent roll, pitch and yaw for quick and precise projector registration.
- Quick Release
- Quick connect/disconnect with convenient lamp and filter access on most projectors. Disconnecting maintains registration and doesn't affect preset adjustments.
- Security
- All-Points Security steel-into-steel locking hardware at all connection points protects against theft. (No key or lock)
- Installation
- Multiple installation options including: flush mount to ceiling, use 0.25" threaded rods, or use a 1.5" NPT column.
- Fits Most Projectors
- Now includes new universal interface to further reduce installation time.
UPC: 841872119748 In the Box Bundle Items WP22S Ultra Short Throw Projector Wall Mount 40" Extension wvbszttrdqsuus - Wall Plate Cover (Left & Right)
RSMD000 Mini RPA Projector Mount (Silver) - 10 Year Manufacturer's Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief WP22US Ultra Short Throw & Universal Projector Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - WP22S Ultra Short Throw Projector Wall Mount 40" Extension
| Load Capacity | 25 lb (11.34 kg) | | Adjustments | Level +4°/-0° | | Extension | 2.38 to 39.12" (6 to 99 cm) | | Lateral Shift | 1.75" (44 mm) | | Overall Dimensions (H x W x D) | 40.36 x 19.05 x 8.62" (103 x 48 x 22 cm) | | | | Box Dimensions (LxWxH) | 41.0 x 11.0 x 10.0" | - RSMD000 Mini RPA Projector Mount (Silver)
| Compatibility | To confirm the compatibility of this mount with your projector, visit Chief's | | Adjustments | Roll: +/-3°
Pitch: +/-20°
Yaw: 360° | | Construction | Steel | | Dimensions (HxWxD) | 1.44 x 4.38 x 4.39" (3.7 x 11.1 x 11.2 cm) | | Weight Capacity | 25 lbs (11.3 kg) | | Color | Silver | | | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 4.0" |
