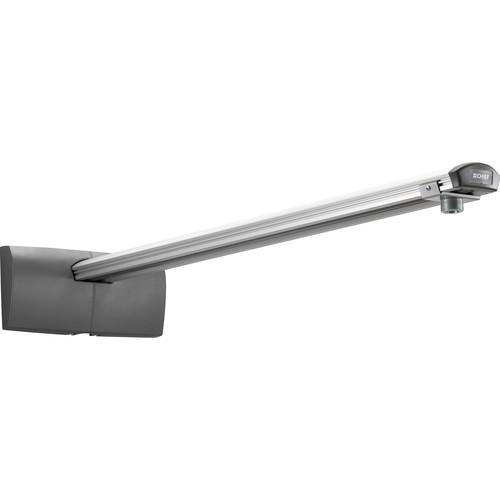

User Manual for Chief WP23S Ultra Short Throw Projector Wall Mount 56" Extension Click to enlarge the picture
Contents of the user manual for the Chief WP23S Ultra Short Throw Projector
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief WP23S Ultra Short Throw Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief WP23S Ultra Short Throw Projector Wall Mount 56" Extension offers an ideal solution for mounting your projector on to a variety of surfaces like concrete, block wall, brick, dual wood, or dual steel studs. The projector has a precision adjustment system, which can be used for manually altering the projector position horizontally and vertically. A lateral shift of 1.75" (44.45mm) allows you to alter the position of the mount laterally without detaching the wall plate. In addition, the integrated micro leveling lets you minutely adjust the horizontal level of the arm.
The 1.5" NPS collar provides compatibility with the RPA, Elite, RPA Mini, and Elite Mini Series projector mounts (to be purchased separately). It can also support wall-mounted long-throw projectors.
Aesthetically designed, the Inlay Cable Management system both protects and conceals the cables ensuring a clean finish. - Precision Adjustment
-
- Projector mount slides along arm for infinite projector placement
- Integrated micro leveling to make minute adjustments to the height of the arm
- Lateral shift of 1.75" (44mm) for altering the position of the mount even after installation
- Integrated Cable Management
-
- Inlay style cable management system conceals and protects cables for a clean finish
- Multiple Installation Options
-
- Designed for mounting to concrete, block wall, brick, dual wood or dual steel studs
- Hardware for mounting to wood stud and concrete wall included
- Compatibility
-
- 1.5" (38.1mm) NPS collar provides compatibility with RPA & Elite Series projector mounts and other accessories
- Supports wall-mounted long-throw projectors
- Customized Installation
-
- Removable logo card on the end cap of the mount can be replaced with personalized information
UPC: 841872153940 In the Box Chief WP23S Ultra Short Throw Projector Wall Mount 56" Extension Projector Arm Wall Plate Cover (Left & Right) Wall Plate Mounting Hardware 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief WP23S Ultra Short Throw Projector Wall Mount 56" Extension in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief WP23S Specs | Load Capacity | 25 lb (11.34 kg) | | Adjustments | Level +4°/-0° | | Extension | 2.38 to 55.12" (6 to 140 cm) | | Lateral Shift | 1.75" (44 mm) | | Overall Dimensions (H x W x D) | 56.36 x 19.05 x 8.62" (143 x 48 x 22 cm) | | | | Package Weight | 25.4 lb | | Box Dimensions (LxWxH) | 57.0 x 11.0 x 10.5" |
