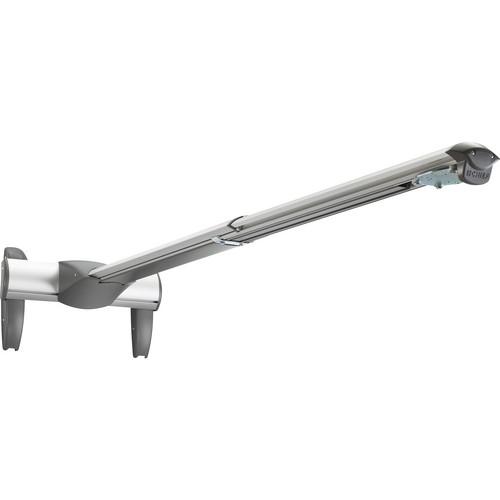

User Manual for Chief X-Large Short Throw Wall Mount Click to enlarge the picture
Contents of the user manual for the Chief X-Large Short Throw Wall Mount
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief X-Large Short Throw Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Chief X-Large Short Throw Wall Mount (Dual Stud) is designed for short throw projectors It provides ideal placement and alignment, and also supports wall-mounted long-throw projectors. It offers compatibility with RPA, RPA Elite, RPA Mini, and RPA Elite Mini Series projector mounts, and bears loads up to 50 lb (22.68kg).
An integrated cable management system allows you to hide the cables and it provides protection, while offering a clean look. The X-Large Short Throw Wall Mount features an integrated lateral shift, micro height, and level adjustment, and can extend up to 3 to 5.5’ (91 to 167.6 cm).
With an innovative quick-connect system, the X-Large Short Throw Wall Mount can be quickly installed, and allows you to adjust the roll, pitch, and yaw settings. It features various keyed locking options (A/B/C/D), and comes with hardware for wood stud, steel stud, and concrete wall construction. The X-Large Short Throw Wall Mount comes with short throw arm (projector mount should be seperately ordered). - Designed for short throw projector providing ideal placement and alignment, and also supports wall-mounted long-throw projectors
- Offers compatibility with RPA, RPA Elite, RPA Mini, and RPA Elite Mini Series projector mounts, and bears load up to 50 lb (22.68kg)
- Integrated cable management system allows you to hide the cables and provides protection offering a clean look
- Features an integrated lateral shift, micro height, and level adjustment, and can extend up to 3 to 5.5' (91 to 167.6 cm)
- With an innovative quick-connect system the X-Large Short Throw Wall Mount (Dual Stud) can be quickly installed
- Allows you to adjust the roll, pitch, and yaw settings
- Features various keyed locking options (A/B/C/D), and comes with hardware for wood stud, steel stud, and concrete wall construction
- Comes with short throw arm (projector mount should be seperately ordered)
UPC: 841872147277 In the Box Chief X-Large Short Throw Wall Mount (Dual Stud) Hardware for Wood Stud, Steel Stud, and Concrete wall construction 10-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief X-Large Short Throw Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief WM240S Specs | Compatibility | Compatible with RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts | | Extension | 37.2 - 66" (94.5 - 167.64 cm) | | Adjustments | Roll: 0° Pitch: 3° Yaw: 0° | | Lateral Shift | 10 | | Color | Silver | | Weight Capacity | 50 lb (22.7 kg) | | Dimensions (HxWxD) | 11.5 x 19.6 x 70.4" (293 x 499 x 1788 mm) | | Certifications | UL approved | | | | Package Weight | 27.5 lb | | Box Dimensions (LxWxH) | 42.0 x 12.5 x 12.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
