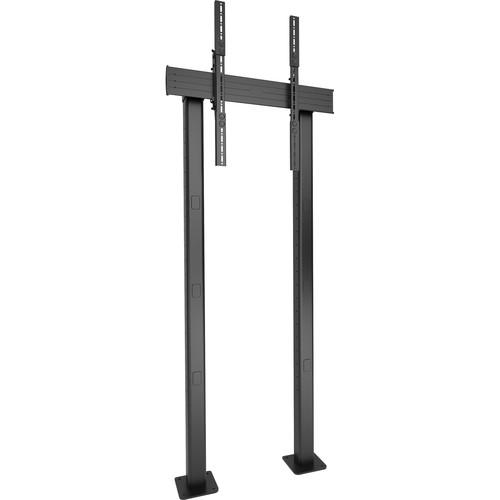

User Manual for Chief XBM1UP Fusion XL Single Bolt-Down Solution Click to enlarge the picture
Contents of the user manual for the Chief XBM1UP Fusion XL Single Bolt-Down
- Product category: Monitor Floor Stands Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Floor Stands
|
User manual for the Chief XBM1UP Fusion XL Single Bolt-Down contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description This Portrait Chief XBM1UP Fusion XL Single Bolt-Down Solution makes it possible to install extra large displays in prominent locations. Screen array configuration: 1 screen. -
- Works with displays 42 - 80" and up to 250 lbs (113.4 kg)
- Bolt-down solution allows for a permanent install
- Easily align displays with independent height, plumb and lateral shift adjustment
- Integrated cable management for a clean installation
- TAA Compliant
In the Box Chief XBM1UP Fusion XL Single Bolt-Down Solution (Portrait) 5/32 Hex Wrench 1/8 Hex Wrench 3/16 Hex Wrench Limited 10-Year Warranty Manual PDF 955kbzavyttbxawcddb Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief XBM1UP Fusion XL Single Bolt-Down Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief XBM1UP Specs | Height | Center of Display to Floor/Table Range: 82.38" (209.2 cm) maximum top
16.38" (41.6 cm) minimum bottom | | Certification | UL Listed | | Color | Black | | Lateral Shift | Yes | | Manual Height Adjustment | Micro-adjustment up to 0.75" (1.9 cm) per screen | | Mounting Pattern Compatibility | 100 x 100 mm - 900 x 400 mm | | Orientation | Portrait | | Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) | | Screen Array Configuration | 1 | | Solution Type | Universal | | Typical Screen Sizes | 42 to 80" / 106 to 203 cm | | Weight Capacity | 250 lb (113 kg) | | Dimensions | 84.38 X 36 X 7.5" / 214.3 x 91.4 x 19.1 cm |
