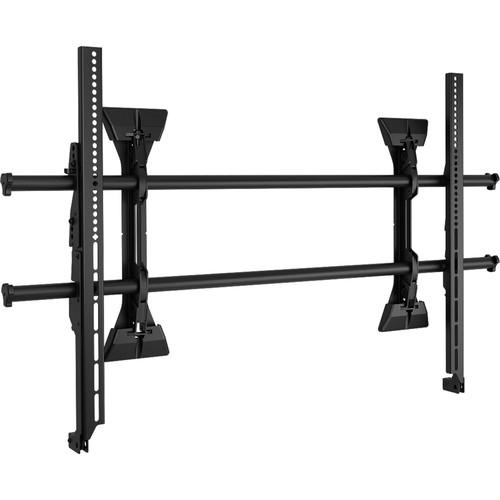

Product description The Chief XSM1U Fusion Series Fixed Wall Mount will support TVs and monitors with a screen size of 55 to 82" and up to 250 lb, while offering the option of post-installation lateral shift up to 21.4" and height and level adjustment. It features a built-in kickstand for easy access behind the screen. The XSM1U has ClickConnect, which provides an audible click when the screen is safely engaged with the mount. - Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 21.4" of post-installation lateral shift for near limitless centering
- Set screws keep the mount rigid, stable, and secure throughout the life of the installation
- A full line of accessories can be installed with the mount, and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Included nesting spacers can be stacked to achieve virtually any depth from display to wall
- Quick-store cords use magnets to easily store and access pull cords
- Integrated padlock shackle for adding a lock, up to 5/16" in diameter
- Easy-to-open box with less waste to throw away
UPC: 841872163871 In the Box Chief XSM1U Fusion Series Fixed Wall Mount for 55 to 82" Displays Mounting Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief XSM1U Fusion Series Fixed Wall Mount for 55 to 82" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief XSM1U Specs | | | Supported Screen Sizes | 55 to 82" / 139.7 to 208.3 cm | | Supported Weight Capacity | 250 lb / 113.4 kg | | Mounting-Hole Pattern | 100 x 100 to 1070 x 600 mm | | Number of Displays Supported | 1 | | | | Lateral Shift | 21.4" / 54.3 cm | | Vertical Adjustment | 1.0" / 2.5 cm | | Orientation | Landscape | | | | Security | Padlock Supported | | Stud Distance | 24.0" / 61.0 cm
32.0" / 81.3 cm
40.0" / 101.6 cm
42.0" / 106.7 cm | | Distance from Mounting Surface | 2.3" / 5.7 cm | | Dimensions | 26.25 x 42.75 x 2.25" / 66.7 x 108.6 x 5.7 cm | | | | Package Weight | 25.6 lb | | Box Dimensions (LxWxH) | 48.25 x 18.25 x 2.5" |
