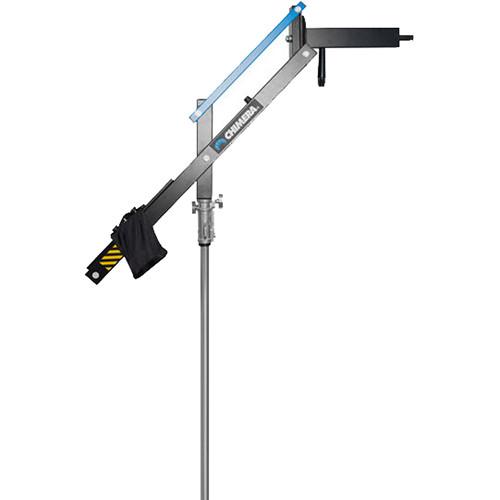

User Manual for Chimera Compact Light Boom Click to enlarge the picture
Contents of the user manual for the Chimera Compact Light Boom
- Product category: Boom Equipment Chimera
- Brand: Chimera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chimera Boom Equipment
|
User manual for the Chimera Compact Light Boom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chimera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!
|
Product description The Compact Light Boom from Chimera offers a quick and easy way to position a light. Operating like a small jib arm, the Light Boom provides 32" of reach and features a 360° rotating head extension for angle adjustment. A single handle on the head extension is used to control all movements. The Light Boom features a combo baby/junior pin receiver for mounting to stands and accepts light fixtures that mount on a 5/8" baby pin (hex-sided). For balancing your light, the pole features a sliding counterweight system, with an empty counterweight bag included. - Features
-
- 12" head extension at the end of the boom offers 360° of rotation for light angle adjustment
- All angle movements controlled by a convenient handle at the head pivot point
- Sliding counterweight system adjusts for different sizes of lights and boxes
- Self-arresting movement
- Minimized length of counterweight section for use in smaller sized studios
- The boom assembles in less than five minutes and requires no tools
- 5/8" baby pin for light attachment
- Combo baby/junior pin receiver for stand mounting
UPC: 845077038101 In the Box Chimera Compact Light Boom 12" Extension Counterweight Bag Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Compact Light Boom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChimera 3810 Specs | Load Capacity | 7.5 lb (3.5 kg) | | Reach | 32" (81.3 cm) with 12" (30.5 cm) extension | | Pivot | ±75° | | Mount | Stand: Combo baby/junior pin receiver
Light Mount: 5/8" (16 mm) baby pin (hex-sided) | | Length | 4.3' (1.3 m) | | Weight | 9 lb (4 kg) without counterweight | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 40.0 x 11.5 x 6.98" |
