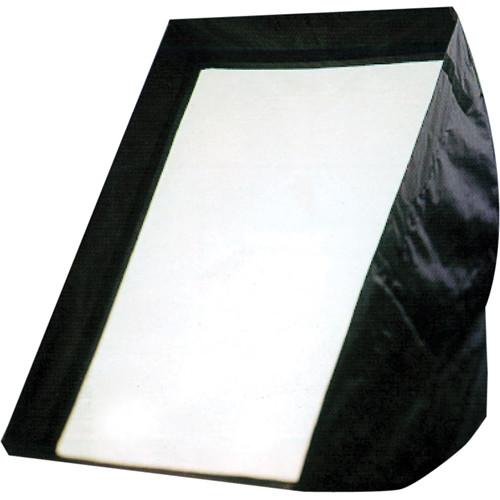

User Manual for Chimera Daylight Plus Softbox - Large, 54x72" Click to enlarge the picture
Contents of the user manual for the Chimera Daylight Plus Softbox - Large,
- Product category: Softboxes Chimera
- Brand: Chimera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chimera Softboxes
|
User manual for the Chimera Daylight Plus Softbox - Large, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chimera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!
|
Product description The Chimera Large Daylight Plus is designed for use with large Fresnel lights. It is rated up to 12,000 Watts and fixture diameters from 9" to 21.5 inches. It may also be used with studio flash, but this is not economical in the long run since adapter rods would be required for the attachment of a strobe ring; this box has shorter rods.The extra depth of the Daylight allows the fresnel beam to spread out and cover the front face more evenly. This extra depth, combined with a fabric that is more heat resistant, makes the box safe when used with a 12K light. Use this box for the softest light possible. The "Plus" designation means the face of the box is removable. Chimera makes different strengths of diffusion material for front face applications. This softbox comes with a one-stop diffusion cloth, and additional 1/2 and 1/4 grid cloths. Substituting a half or quarter diffusion, or taking out the interior baffle will result in more contrast, slightly more light transmission, and less softening of the light. - Recessed face makes the soft source more directional, and enables addition of a honeycomb grid, soft fabric grid or louvers.
UPC: 845077086454 In the Box Chimera Daylight Plus Softbox - Large, 54x72" Black Storage bag for Softbox, Diffusion Screen and Poles Poles Interior Baffle 1 f-stop Front Diffusion Cloth, 1/2 Grid Cloth & 1/4 Grid Cloth Limited 5-Year Warranty NOTE: Speed Ring is REQUIRED and Not Included Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Daylight Plus Softbox - Large, 54x72" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChimera Daylite Plus Specs | Size | 54 x 72" (135 x 180 cm) | | Shape | Extra Deep Rectangle | | Compatibility | Hot lights up to 12,000 Watts
Strobes of any w/s output with adapter rods # 4099 | | Removable Face | Yes | | Removable Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | Yes | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 32.0 x 8.0 x 8.0" |
