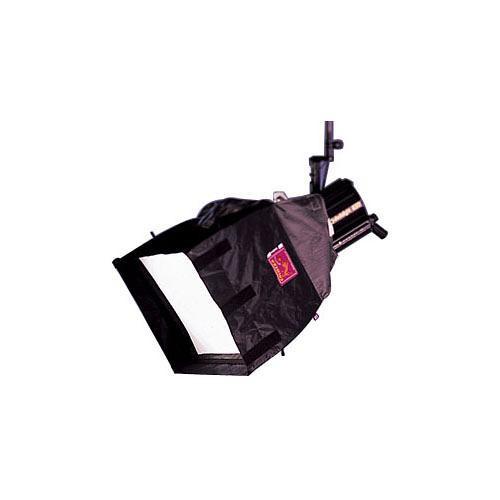

User Manual for Chimera Daylite Junior Plus 1 Softbox - XX-Small - 12x16" Click to enlarge the picture
Contents of the user manual for the Chimera Daylite Junior Plus 1 Softbox
- Product category: Softboxes Chimera
- Brand: Chimera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chimera Softboxes
|
User manual for the Chimera Daylite Junior Plus 1 Softbox contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chimera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!
|
Product description The XX-Small Daylight Junior Plus 1 is designed for a small fresnel light up to 500 Watts. It may also be used with a strobe light if desired. The extra depth of the Daylight (it's about 30% deeper than the Video Pro Plus) allows the fresnel beam to spread out and cover the front face more evenly (If you are using open-face lights, the Video Pro Plus banks are a more cost effective solution).The silver interior will provide a fairly spectral light quality with a fast gradation from highlight to shadow areas. It may be taken on location and set up quickly and easily, using the optional speed ring necessary for mounting onto your fixture.The "Plus" designation indicates a removable front face. This softbox comes with a one stop diffusion cloth. 1/2 and 1/4 grid cloths are available separately. Substituting a half or quarter difusion will result in more contrast, slightly more light transmission, and less softening of the light. - The recessed front face enables easy attachment of honeycomb grid, soft fabric grids or louvers.
- This softbox will work with Hotlights or Strobes
UPC: 845077082043 In the Box Chimera Daylite Junior Plus 1 Softbox - XX-Small - 12x16" (30x40cm) Black Storage bag for Softbox, Difusion Screen and Poles Poles 1 f-stop Front Diffusion Cloth Limited 5-Year Warranty NOTE: Speed Ring is REQUIRED and Not Included Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Daylite Junior Plus 1 Softbox - XX-Small - 12x16" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChimera Daylite Jr Plus One Specs | Size | 12 x 16" (30 x 40 cm) | | Shape | Extra Deep Rectangle | | Compatibility | Hot lights up to 500 Watts, Strobes of any w/s power | | Removable Face | Yes | | Removable Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 21.3 x 4.2 x 4.2" |
