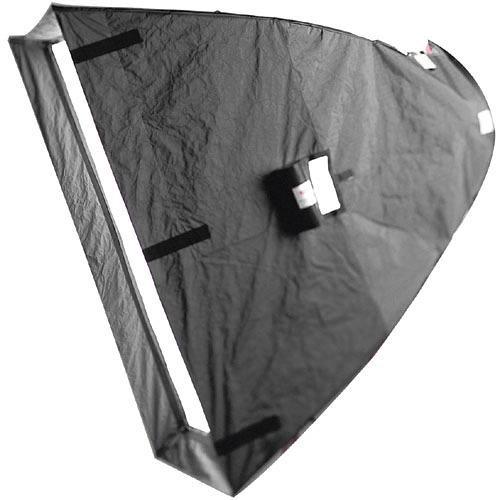

User Manual for Chimera Daylite Plus 1 Softbox - Small - 24x32" Click to enlarge the picture
Contents of the user manual for the Chimera Daylite Plus 1 Softbox -
- Product category: Softboxes Chimera
- Brand: Chimera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chimera Softboxes
|
User manual for the Chimera Daylite Plus 1 Softbox - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chimera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!
|
Product description The Small Daylight Plus 1 is designed for use with a Fresnel HMI or Hotlight up to 4,000 Watts and diameters from 9" to 21.5 inches. It is possible, but not convenient or economical, to use this box with a studio strobe.The extra depth of the Daylight (it's about 30% deeper than the Video Pro Plus) allows the fresnel beam to spread out and cover the front face more evenly. This extra depth, combined with a fabric that is more heat resistant, makes the box safe when used with a 4,000 Watt light. The "Plus 1" designation means the front face of the softbox is removable. Chimera makes different strengths of diffusion material for front face applications. This softbox comes with a one stop diffusion cloth only. 1/2 and 1/4 grid cloths are available separately. Substituting a half or quarter difusion or taking off the interior baffle would result in even more contrast, slightly more light transmission, and less softening of the light. - Designed for use with Fresnel HMI or hot lights.
- The recessed front face helps to make the soft source more directional, and enables the user to quickly add easily add light control accessories, such as the honeycomb grid, soft fabric grids or louvers.
- If this box is used with Studio Flash, Adapter Rods # 4099 are required.
- Required Speed (mounting) Rings are available separately for many manufacturers' light heads.
UPC: 845077086249 In the Box Chimera Daylite Plus 1 Softbox - Small - 24x32" (60x80cm) Black Storage bag for Softbox, Difusion Screen and Poles Poles Interior Baffle 1 f-stop Front Diffusion Cloth Limited 5-Year Warranty PLEASE NOTE: Speed Ring is REQUIRED and Not Included Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Daylite Plus 1 Softbox - Small - 24x32" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChimera Daylite Plus One Specs | Size | 24 x 32" (60 x 80 cm) | | Shape | Extra Deep Rectangle | | Compatibility | HMI or Hot lights up to 4,000 Watts
Strobes of any w/s output with adapter rods # 4099 | | Removable Face | Yes | | Removable Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 40.0 x 6.05 x 6.05" |
