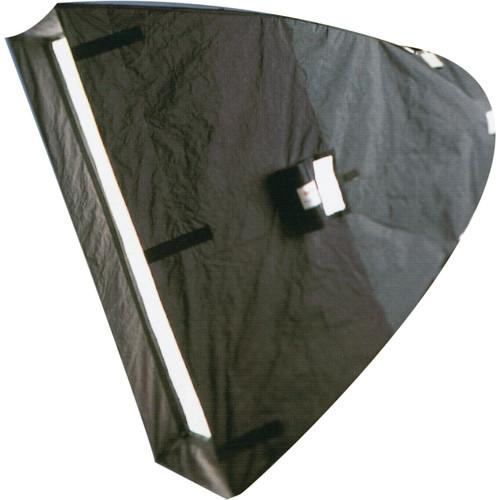

User Manual for Chimera Daylite Senior Plus Softbox - Large - 54x72" Click to enlarge the picture
Contents of the user manual for the Chimera Daylite Senior Plus Softbox -
- Product category: Softboxes Chimera
- Brand: Chimera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chimera Softboxes
|
User manual for the Chimera Daylite Senior Plus Softbox - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chimera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!
|
Product description The Large Daylight Senior is the largest, most durable softbox Chimera makes. It is designed for use with a Fresnel up to 24,000 Watts with a front diameter between 24 and 29 inches. It utilizes an extremely deep profile of 50 inches. The extra depth of the Daylight Senior (it's about 30% deeper than the Quartz softboxes) allows the fresnel beam to spread out and cover the front face more evenly. This extra depth, combined with a fabric that is even more heat resistant, makes the box safe when used with a 24Klight.The "Plus" designation means the front face is removable. Chimera makes different strengths of diffusion material for front face applications. The softbox comes with a one stop diffusion cloth, and additional 1/2 and 1/4 grid cloths. Substituting a half or quarter difusion or taking off the interior baffle would result in even more contrast, slightly more light transmission, and less softening of the light.The real benifit of the large 54x72" size is the softest light possible. - The recessed front face helps to make the soft source more directional, and enables addition of a honeycomb grid, soft fabric grid or louvers.
- Required Speed (mounting) Rings are available separately for many manufacturers' lights.
UPC: 845077087451 In the Box Chimera Daylite Senior Plus Softbox - Large - 54x72" (135x180cm) Black Storage bag for Softbox, Difusion Screen and Poles Poles Interior Baffle 1 f-stop Front Diffusion Cloth, 1/2 Grid Cloth & 1/4 Grid Cloth Limited 5-Year Warranty NOTE: Speed Ring is REQUIRED and Not Included Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Daylite Senior Plus Softbox - Large - 54x72" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChimera Daylite Sr Plus Specs | Size | 54 x 72" (135 x 180cm) | | Shape | Extra Deep Rectangle | | Compatibility | Hot lights up to 24,000 Watts
Strobes of any w/s with adapter rods # 4099 | | Removable Face | Yes | | Removable Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | | | | | Package Weight | 9.85 lb | | Box Dimensions (LxWxH) | 32.3 x 8.9 x 8.3" |
