User Manual for Chimera Lantern and Standard Light Boom Kit Click to enlarge the picture
Contents of the user manual for the Chimera Lantern and Standard Light Boom
- Product category: Tungsten Lights Chimera
- Brand: Chimera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chimera Tungsten Lights
|
User manual for the Chimera Lantern and Standard Light Boom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chimera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chimera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chimera product will considerably shorten its lifespan!
|

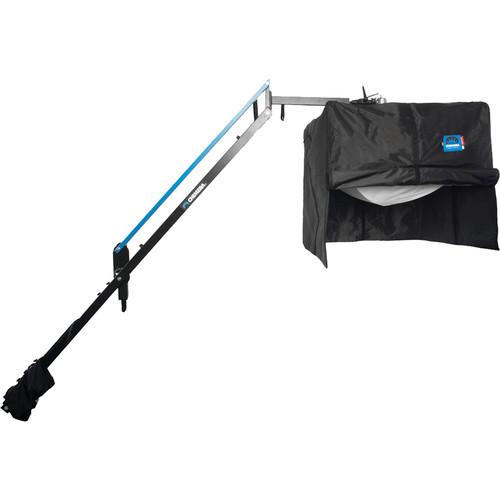

Product description The Lantern and Standard Light Boom Kit from Chimera includes a Large Pancake Lantern, a Triolet Lamp Base, and a Standard Light Boom with counterweight bags.The Lantern is a 48" square light source with a half dome profile that can be used overhead to light an entire room. The lantern also comes with a skirt that can be rolled down on any or all of the four sides for dramatic lighting effects. The Triolet is an ideal mate for the lantern. The mogul socket comes with an E26 Edison base adapter with a 1,000W rating attached to a quick release speed ring that takes minutes to mount to the lantern. Offering 360 degrees of unlimited light angle and directional control and a 6' reach, all of the boom's angle movements are controlled by a handle at the pivot point. It comes with two empty counterweight bags capable of holding up to 15 lb total of lead shot. - Standard Light Boom The Standard Light Boom from Chimera offers a quick and easy way to position a light, particularly overhead lights with softboxes. Operating like a small jib arm, the Light Boom provides 72" of reach and features a 360° rotating head extension for angle adjustment. A single handle on the head extension is used to control all movements. The Light Boom features a combo baby/junior pin receiver for mounting to stands and accepts light fixtures that mount on a 5/8" baby pin (hex-sided). For balancing your light, the pole features a sliding counterweight system, with two empty counterweight bags included, capable of holding of to 15 lb.
- Features
-
- 18" head extension at the end of the boom offers 360° of rotation for light angle adjustment
- All angle movements controlled by a convenient handle at the head pivot point
- Sliding counterweight system adjusts for different sizes of lights and boxes
- Self-arresting movement
- Minimized length of counterweight section for use in smaller sized studios
- The boom assembles in less than five minutes and requires no tools
- 5/8" baby pin for light attachment
- Combo baby/junior pin receiver for stand mounting
UPC: 845077038002 - Triolet Mogul Base Flood Light with Quick Release Speed Ring (120 VAC) The Chimera Triolet Mogul Base Flood Light accepts Mogul base bulbs up to 1000 watts. The included screw-in adapter may be used for household bulbs. There is an optional 2-pin adapter for halogen bulbs up to 1000 watts.This is a fixture designed for use with 120 VAC current. It has an Edison grounded plug and in-line switch. Its speed ring adapter is designed for rectangular, heat-resistant softboxes. An optional protective glass dome is available, but limits halogen use to 650 watts.
- Broad, Omni-Directional Light
- Compatible with light banks, lanterns, or without a modifier for a bare-bulb light effect.
- Versatile
-
- May be used with a Chimera Lantern, or VideoPro series softbox.
- Also compatible with the Photoflex Silverdome or Westcott FV2 series heat resistant softboxes.
- Stand Adapter
- Comes equipped with the Chimera Single Axis Stand Adapter which allows tilt and swivel of the fixture.
UPC: 845077099300 - Pancake Lantern with Skirt (Large, Full Diffusion) Create a soft 180° light source ideal for overhead lighting with the large Pancake Lantern from Chimera. This model measures 48" in diameter with a depth of 19" and has a flat top that makes it easy to place near a ceiling. Also, this model has a full diffusion cloth and comes with a skirt that features adjustable zippers and touch-tab fasteners so it can be rolled up for control over the light's spread. This lantern is designed for fixtures with wide beam angles or bare-bulb lights and it has a heat-resistant construction that permits the use of lights up to 2000W. Additionally, it comes with a zippered storage sack and it works with a range of separately available speed rings for attaching to your lights. UPC: 845077018707
In the Box Bundle Items Standard Light Boom rqsqvcuxeufzbfdttcsdxtwsadeafysv Triolet Mogul Base Flood Light with Quick Release Speed Ring (120 VAC) - Single Axis Stand Adapter
- 9890QR Quick Release Speed Ring
- 5.0' Attached Power Cord, In-Line Switch, 120V Edison Plug
- E26 Household Screw-In Adapter
Pancake Lantern with Skirt (Large, Full Diffusion) rqsqvcuxeufzbfdttcsdxtwsadeafysv Table of Contents
|
Upload User Manual
Have you got an user manual for the Chimera Lantern and Standard Light Boom Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Standard Light Boom
| Load Capacity | 15 lb (6.5 kg) | | Boom Length | 72" (183 cm) with 18" (45.7 cm) extension | | Pivot | ±75° | | Mount | Stand: Combo baby/junior pin receiver
Light Mount: 5/8" (16 mm) baby pin (hex-sided) | | Length | 8.5' (2.9 m) | | Weight | 16 lb (7.3 kg) without counterweight | | | | Box Dimensions (LxWxH) | 58.0 x 11.0 x 6.5" | - Triolet Mogul Base Flood Light with Quick Release Speed Ring (120 VAC)
| Rating | 500, 650 or 1000 W, 120 VAC | | Socket (Lampholder) | E39 Mogul screw base | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Not Applicable | | Mounting | Baby (5/8") | | Yoke | Not Applicable | | Cable | Attached 15" / 38.1 cm power cord with in-line switch, Edison plug | | Focusing | Not Applicable | | Weight | 2.9 lb / 1.3 kg (without ring) | | Dimensions | 5.25 x 2.5" / 13.3 x 6.3 cm (housing)
(not including 1.75" / 4.4 cm bottom mounting stud) | | | | Box Dimensions (LxWxH) | 14.0 x 9.6 x 9.6" | - Pancake Lantern with Skirt (Large, Full Diffusion)
| Shape | Rounded | | Size | 48" / 122 cm | | Depth | 19" / 48 cm | | Maximum Wattage | 2000 W | | Removable Front Face | No | | Removable Interior Baffle | No | | Accepts Grids | No | | Requires Speed Ring | Yes, separately available | | | | Box Dimensions (LxWxH) | 39.8 x 6.35 x 6.1" |
